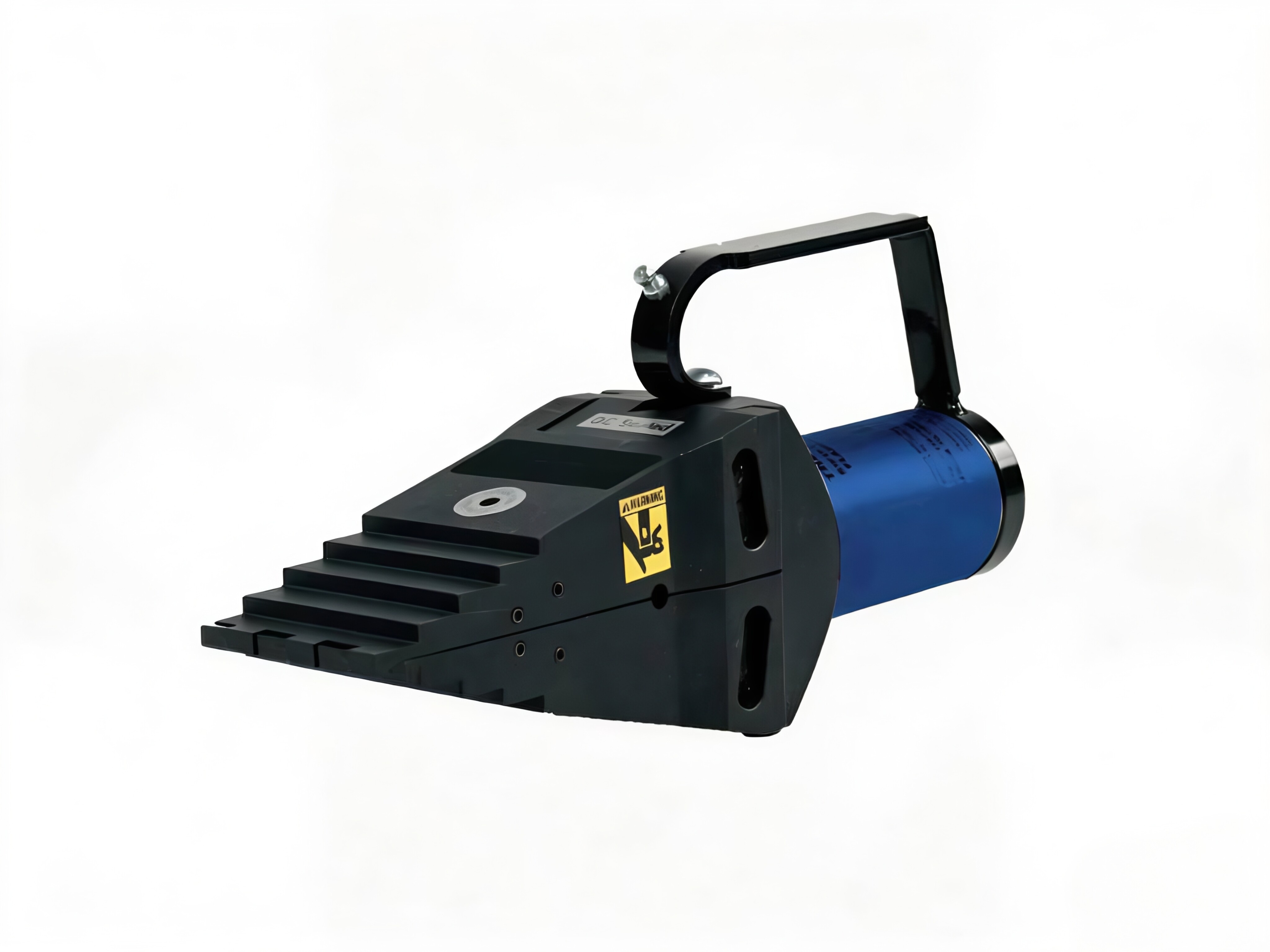

Hydraulic Flange Separator
Suitable for maintenance, inspection, testing, and valve replacement applications;
Product Inquiry
Product Description
Product Line:Hydraulic Flange Expander
- •Suitable for maintenance, inspection, testing, and valve replacement applications;
- •Overall Separation Wedge Concept: Frictionless, parallel smooth motion eliminates risks of flange damage and separation wedge failure.
- •Unique interlocking wedge design: First stage offers no bending or slipping risks.
- •Insertion slot requires a size of only 6mm.
- •The stepped arm design allows each step to handle full load.
- •Fewer moving parts for durability and easy maintenance.
Security Notice
The manufacturer's rated capacity is the maximum safe limit. Best practice encourages using only 80% of these ratings!
Product Specifications
Maximum Working Pressure (bar):
700
Maximum Spreading Force (tons):
14
Maximum Spread (mm):
81
Tip Gap (mm):
6
Power:
Split hydraulic power unit
Oil Capacity (cm³):
78
Weight:
7.1
Product Detail Images

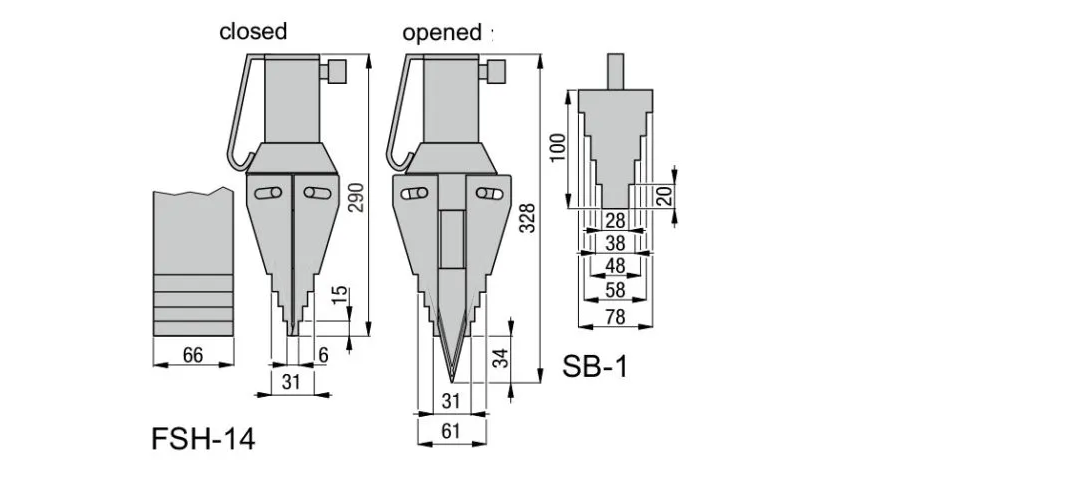

FSH-14 Size Chart

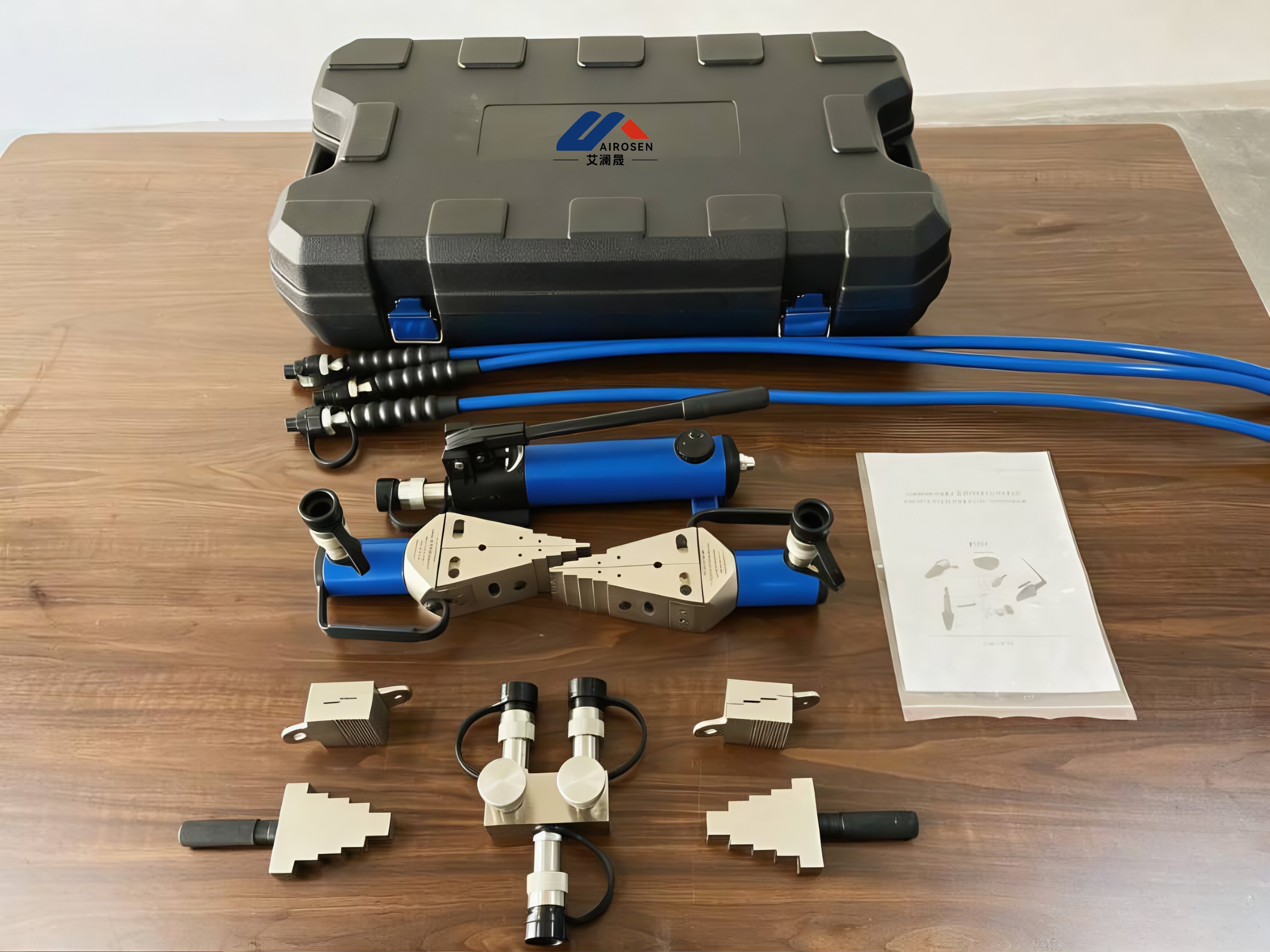

Physical Display
Product Series
| Model | Maximum spread/ton | Tip gap/mm | Maximum spread/mm | Lifting Device Type | Oil Capacity/cm³ | Weight / kg |
|---|---|---|---|---|---|---|
| FSH-14 | 14 | 6 | 81 | hydraulic | 78 | 7.1 |
| FSM8 | 8 | 6 | 81 | Machinery | * | 6.5 |
