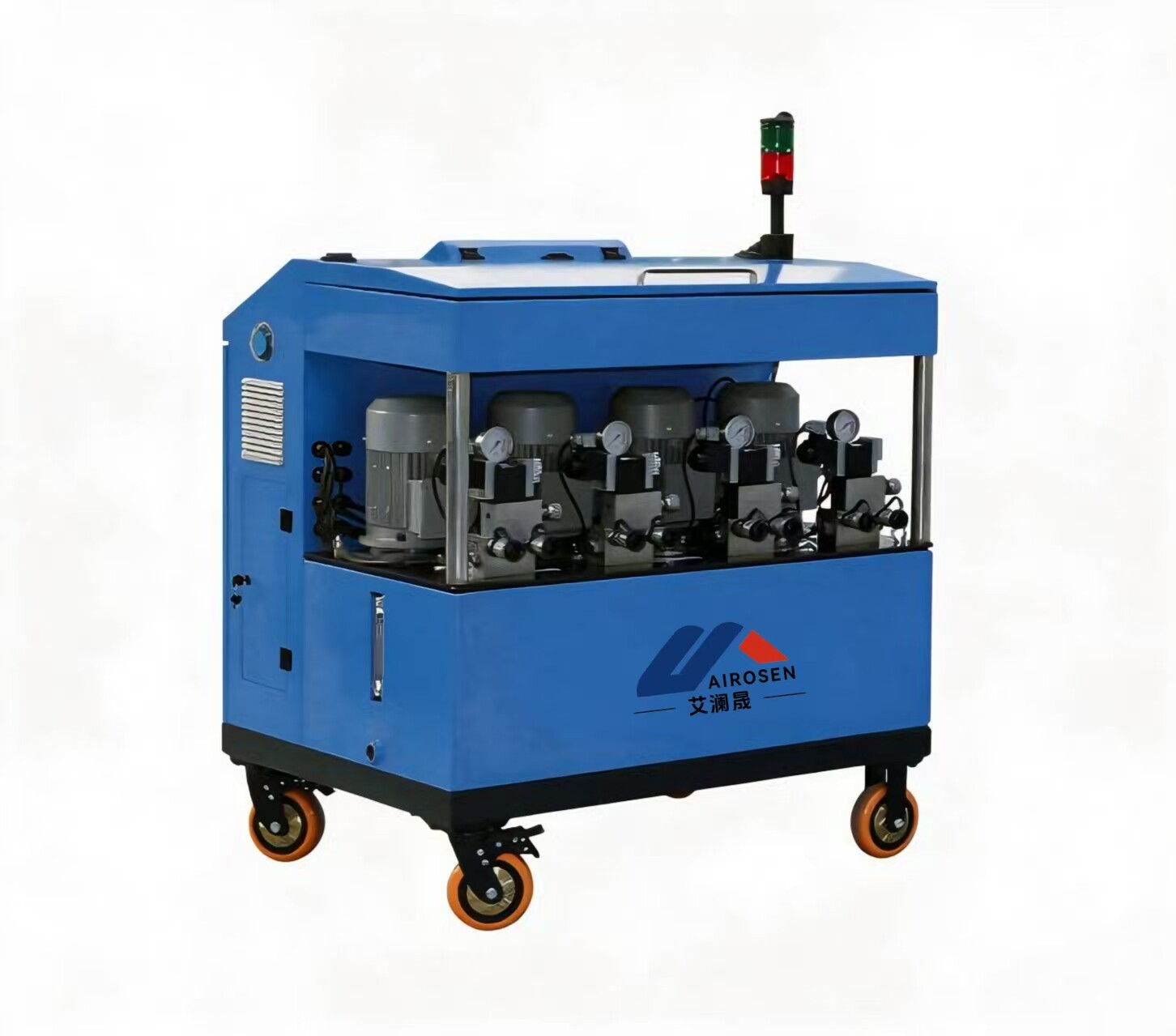

PLC Synchronized Hydraulic Jacking System
PLC-based intelligent control system for multi-point synchronized lifting with up to 1mm precision. Supports 4–80 point synchronization, real-time monitoring of position and pressure at each point, and automatic deviation correction.
Product Inquiry
Product Description
Series:WY-PLC Series
Product Line:PLC Synchronized Hydraulic Jacking System
- •PLC Intelligent Control System: Multi-point Synchronous Lifting with Precision Up to 1mm
- •Supports synchronized control from 4 to 80 points, meeting the needs of projects of varying scales.
- •Real-time monitoring of position and pressure at each point with automatic deviation adjustment
- •Touchscreen HMI with simple, intuitive operation
Considered Secure
The manufacturer's rated load and stroke are maximum safety limits. Best practice recommends using no more than 80% of these ratings!

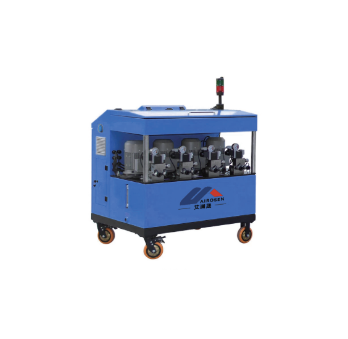

Product Mockup
Product Specifications
Sync Points:
4-80 o'clock
Sync Accuracy:
1mm
Maximum Load:
100-2000 tons
Work stress:
70 MPa
System Weight:
85-450 kg
Product Series
| Model | Sync Points | Sync Accuracy | Maximum Load (tons) | Work stress | Weight (kg) | Dimensions (mm) |
|---|---|---|---|---|---|---|
| WY-PLC4 | 4 | 1mm | 100 | 70 MPa | 85 | 800×600×1200 |
| WY-PLC8 | 8 | 1mm | 200 | 70 MPa | 120 | 1000×700×1400 |
| WY-PLC16 | 16 | 1mm | 400 | 70 MPa | 180 | 1200×800×1600 |
| WY-PLC32 | 32 | 1mm | 800 | 70 MPa | 260 | 1400×900×1800 |
| WY-PLC80 | 80 | 1mm | 2000 | 70 MPa | 450 | 1800×1200×2200 |
