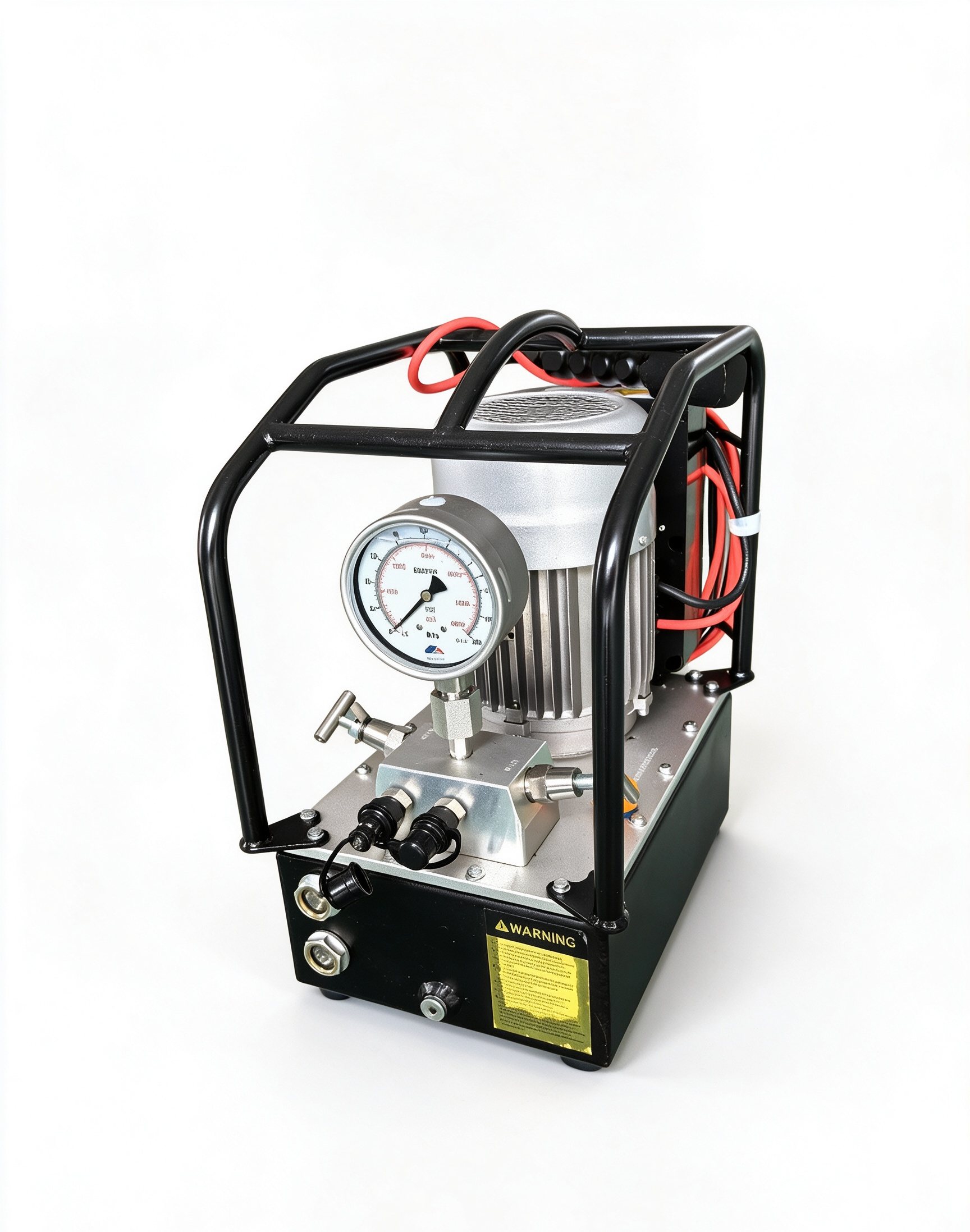

Hydraulic tensioner pump
High-flow design for rapid preload buildup, improved efficiency, and maximum pressure of 200-6000 bar. Meets diverse bolt tensioner requirements with precision pressure gauge and safety valve included.
Product Inquiry
Product Description
Series:WY-SP Series
Product Line:Hydraulic tensioner pump
- •High-flow design for rapid preload application and improved efficiency
- •Maximum pressure: 200-6000 bar, meeting the needs of various hydraulic tensioners
- •Choose between electric or pneumatic actuation
- •Equipped with precision pressure gauges and safety valves for secure operation
Considered Secure
The manufacturer's rated load and stroke are maximum safety limits. Best practice recommends using no more than 80% of these ratings!

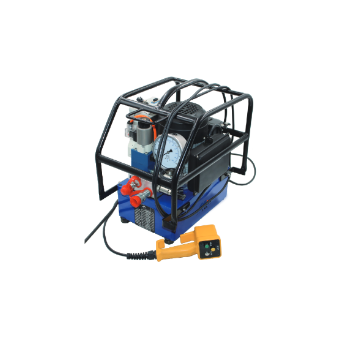

Product Mockup
Product Specifications
Maximum Pressure:
70-200 MPa
Traffic Range:
0.8-2.0 L/min
Drive Type:
Electric/Pneumatic
Weight:
45-92 kg
Electric Series Specifications
| Model | Maximum Pressure | Traffic | Power | Voltage | Weight (kg) | Dimensions (mm) |
|---|---|---|---|---|---|---|
| WY-SP-E70 | 70 MPa | 2.0L/min | 2.2kW | 380V | 65 | 600×400×500 |
| WY-SP-E140 | 140 MPa | 1.5L/min | 3.0 kW | 380V | 78 | 650×420×520 |
| WY-SP-E200 | 200 MPa | 1.0L/min | 4.0 kW | 380V | 92 | 700×450×550 |
Pneumatic Series Specifications
| Model | Maximum Pressure | Traffic | Air Pressure | Air Consumption | Weight (kg) | Dimensions (mm) |
|---|---|---|---|---|---|---|
| WY-SP-P70 | 70 MPa | 1.8L/min | 0.6MPa | 0.8 m³/min | 45 | 500×350×450 |
| WY-SP-P140 | 140 MPa | 1.2L/min | 0.6MPa | 1.0 m³/min | 52 | 550×380×480 |
| WY-SP-P200 | 200 MPa | 0.8L/min | 0.6MPa | 1.2 m³/min | 60 | 600×400×500 |
