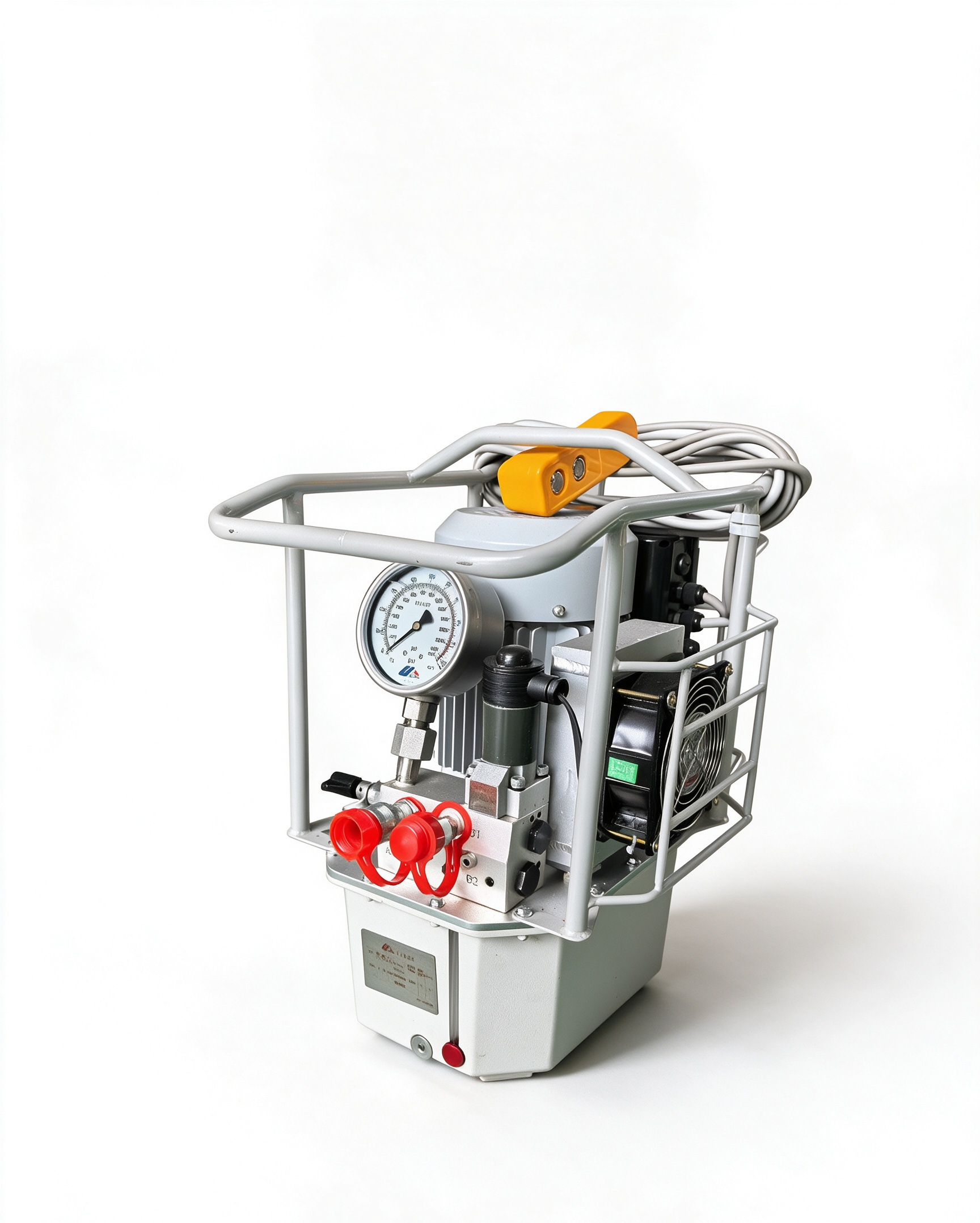

Hydraulic Torque Pump
Three-stage plunger pump design delivers stable pressure output with a maximum of 70-280 MPa, meeting the requirements of various torque wrenches. Includes a remote control for wireless operation.
Product Inquiry
Product Description
Series:WY-TP Series
Product Line:Hydraulic Torque Pump
- •Three-stage plunger pump design for stable pressure output
- •Maximum pressure: 70-280 MPa, meeting the needs of various torque wrenches
- •Equipped with a remote control for remote operation
- •Intelligent Pressure Control System with Automatic Pressure Maintenance
Considered Secure
The manufacturer's rated load and stroke are maximum safety limits. Best practice recommends using no more than 80% of these ratings!
Product Mockup
Product Specifications
Pressure Range:
70-280 MPa
Traffic Range:
0.4-1.2 L/min
Power range:
1.5-4.0kW
Voltage:
220V/380V
Weight:
45-85Kg
Product Series
| Model | Maximum Pressure | Traffic | Power | Voltage | Weight (kg) | Dimensions (mm) |
|---|---|---|---|---|---|---|
| WY-TP70 | 70 MPa | 1.2L/min | 1.5kW | 220V | 45 | 500×350×400 |
| WY-TP140 | 140 MPa | 0.8L/min | 2.2kW | 380V | 58 | 550×380×430 |
| WY-TP200 | 200 MPa | 0.6L/min | 3.0 kW | 380V | 72 | 600×400×460 |
| WY-TP280 | 280 MPa | 0.4L/min | 4.0 kW | 380V | 85 | 650×420×490 |
