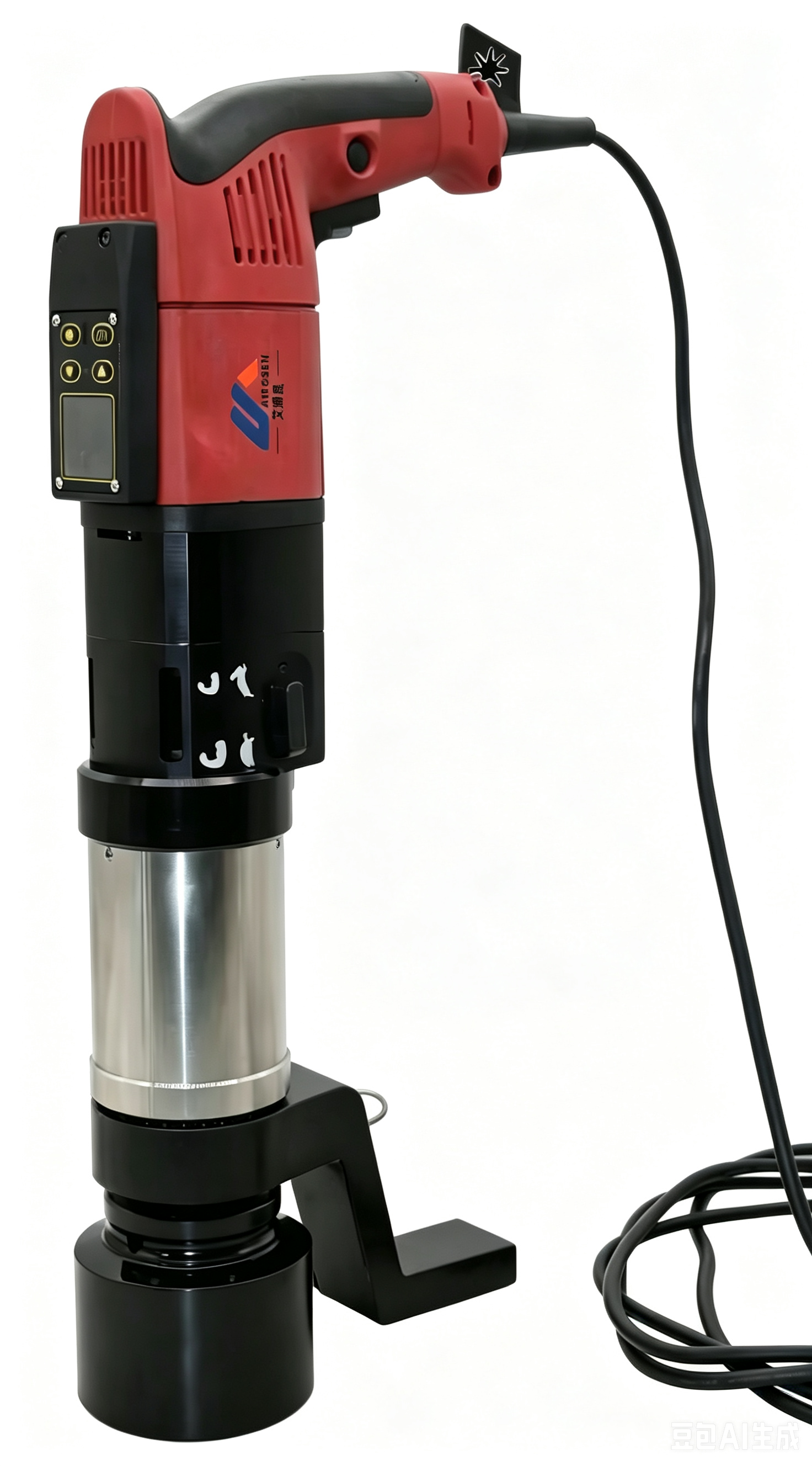

Digital Torque Wrench
Dual-speed design with torque range 100-12000 Nm, accuracy ±3%, equipped with a digital display for real-time torque readings. Features intelligent alerts and automatic stop when preset torque is reached.
Product Inquiry
Product Description
Series:WY-DE Series
Product Line:Digital Torque Wrench
- •Digital display screen shows torque values in real time for intuitive and convenient operation.
- •Dual-speed design for fast tightening and precise positioning
- •High-precision sensor, torque accuracy ±3%
- •Smart alarm function: automatically stops when preset torque is reached.
Considered Secure
The manufacturer's rated load and stroke are maximum safety limits. Best practice recommends using no more than 80% of these ratings!
Product Mockup
Product Specifications
Torque Range:
100-12000Nm
Speed Mode:
Two-speed
Torque Accuracy:
±3%
Power:
220V/380V
Weight:
8.5-24 5kg
Product Series

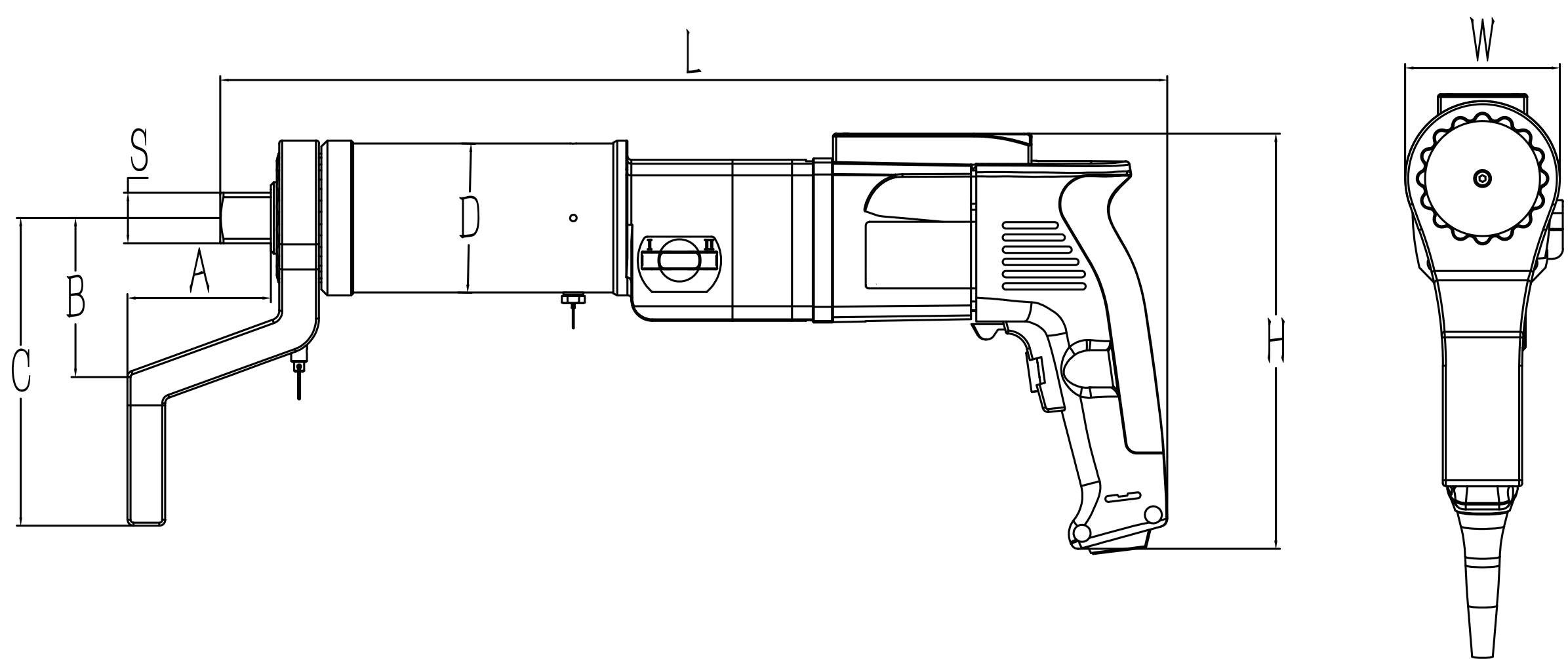

| Model | Torque Range (Nm) | Speed | Accuracy | Power | Weight (kg) | Dimensions (mm) | Size Chart |
|---|---|---|---|---|---|---|---|
| WY-DE100 | 100-1000 | Dual-speed | ±3% | 220V | 8.5 | 420×180×280 | |
| WY-DE500 | 500-5000 | Dual-speed | ±3% | 220V | 12.3 | 480×200×320 | |
| WY-DE1000 | 1000-10000 | Dual-speed | ±3% | 380V | 18.6 | 550×220×360 | |
| WY-DE2000 | 2000-12000 | Dual-speed | ±3% | 380V | 24.5 | 620×240×400 | |
