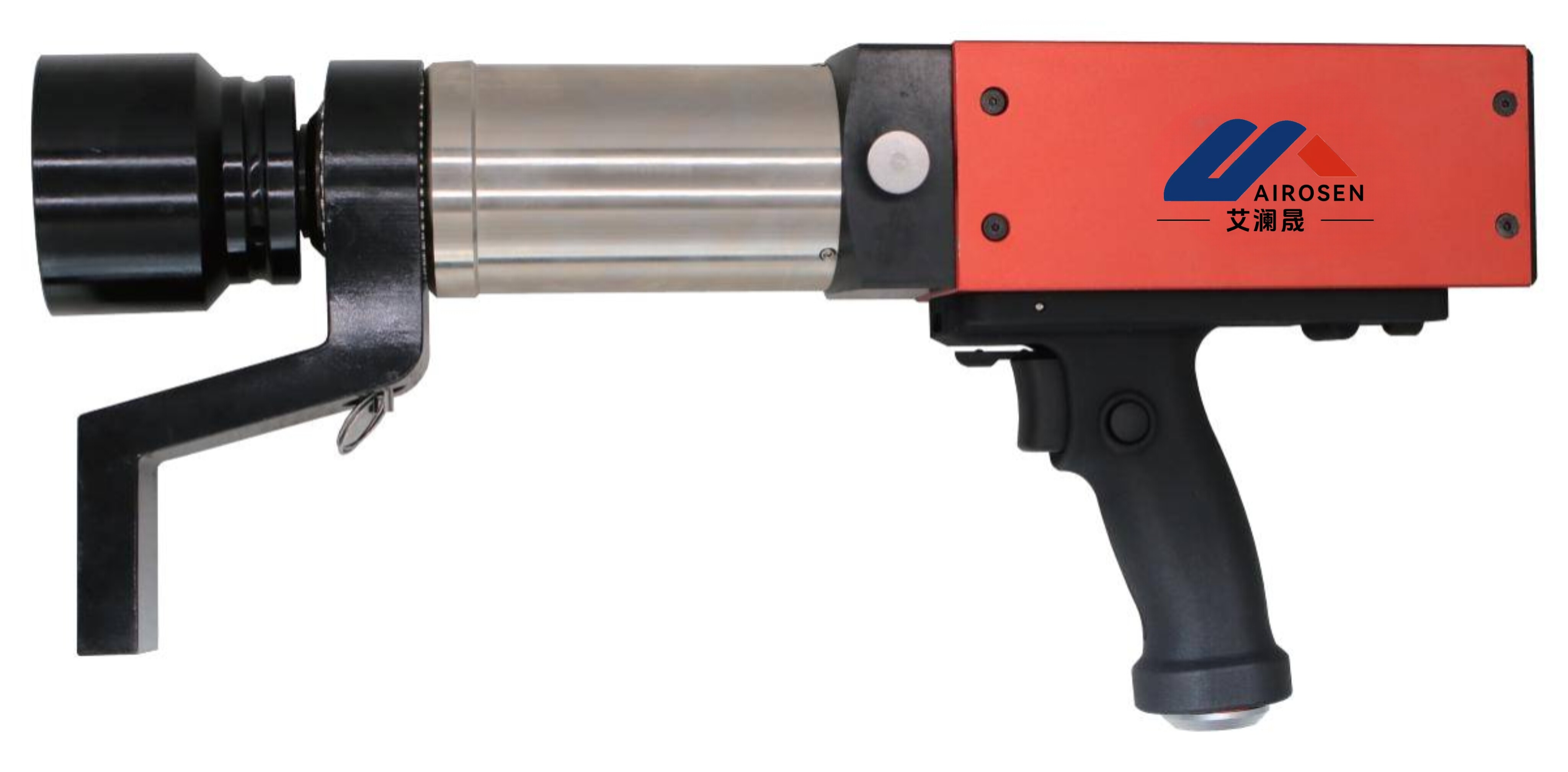

Servo Precision-Controlled Electric Torque Wrench
Precision servo motor control with resolution up to 1 N·m, accuracy ±3%, IoT connectivity for remote monitoring and data collection, and an intelligent control system featuring automatic calibration and fault diagnosis.
Product Inquiry
Product Description
Series:WY-SE Series
Product Line:Servo Precision-Controlled Electric Torque Wrench
- •Servo motor precision control with resolution up to 1 N·m
- •Supports IoT connectivity for remote monitoring and data acquisition
- •High-precision sensor, torque accuracy ±3%
- •Intelligent control system with automatic calibration and fault diagnosis
Considered Secure
The manufacturer's rated load and stroke are maximum safety limits. Best practice recommends using no more than 80% of these ratings!

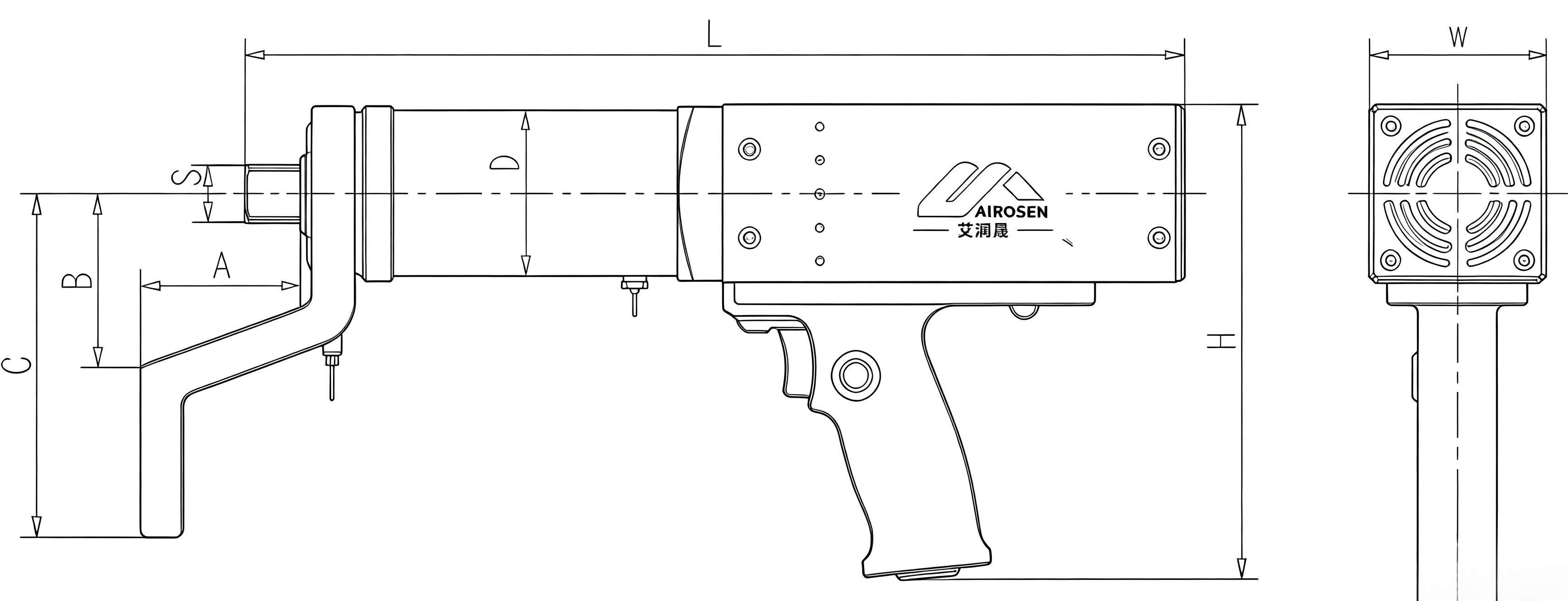

Product Mockup
Product Specifications
Torque Range:
100-12000Nm
Resolution:
1 N·m
Torque Accuracy:
±3%
Communication Method:
Internet of Things
Weight:
9.2-26.2Kg
Product Series
| Model | Torque Range (Nm) | Resolution | Accuracy | Communication | Weight (kg) | Dimensions (mm) |
|---|---|---|---|---|---|---|
| WY-SE100 | 100-1000 | 1 N·m | ±3% | Internet of Things | 9.2 | 430×190×290 |
| WY-SE500 | 500-5000 | 1 N·m | ±3% | Internet of Things | 13.5 | 490×210×330 |
| WY-SE1000 | 1000-10000 | 1 N·m | ±3% | Internet of Things | 19.8 | 560×230×370 |
| WY-SE2000 | 2000-12000 | 1 N·m | ±3% | Internet of Things | 26.2 | 630×250×410 |
