Compact hydraulic cylinder
Low-profile hydraulic cylinders feature a compact, discreet design engineered for lifting in confined spaces.
Product Inquiry
Product Description
- •Compact, lightweight design for tight workspaces
- •Powder-coated surface for enhanced corrosion resistance
- •Dust wipers reduce contamination and extend cylinder service life
- •All models include quick-connect fittings and dust caps.
- •Threaded holes at the top of the groove plug are used to mount inclined saddles.
- •RCS-1002 comes with a handle for easy portability.
- •Bronze-plated steel plunger surface
- •Single-acting, spring return
Security Notice
The manufacturer's rated capacity is the maximum safe limit. Best practice encourages using only 80% of these ratings!
Product Specifications
Capacity:
10-100 Ton
Itinerary:
38-62mm
Top
88-14 1mm
Maximum Operating Pressure:
70 MPa
Weight:
4.1-22.7Kg

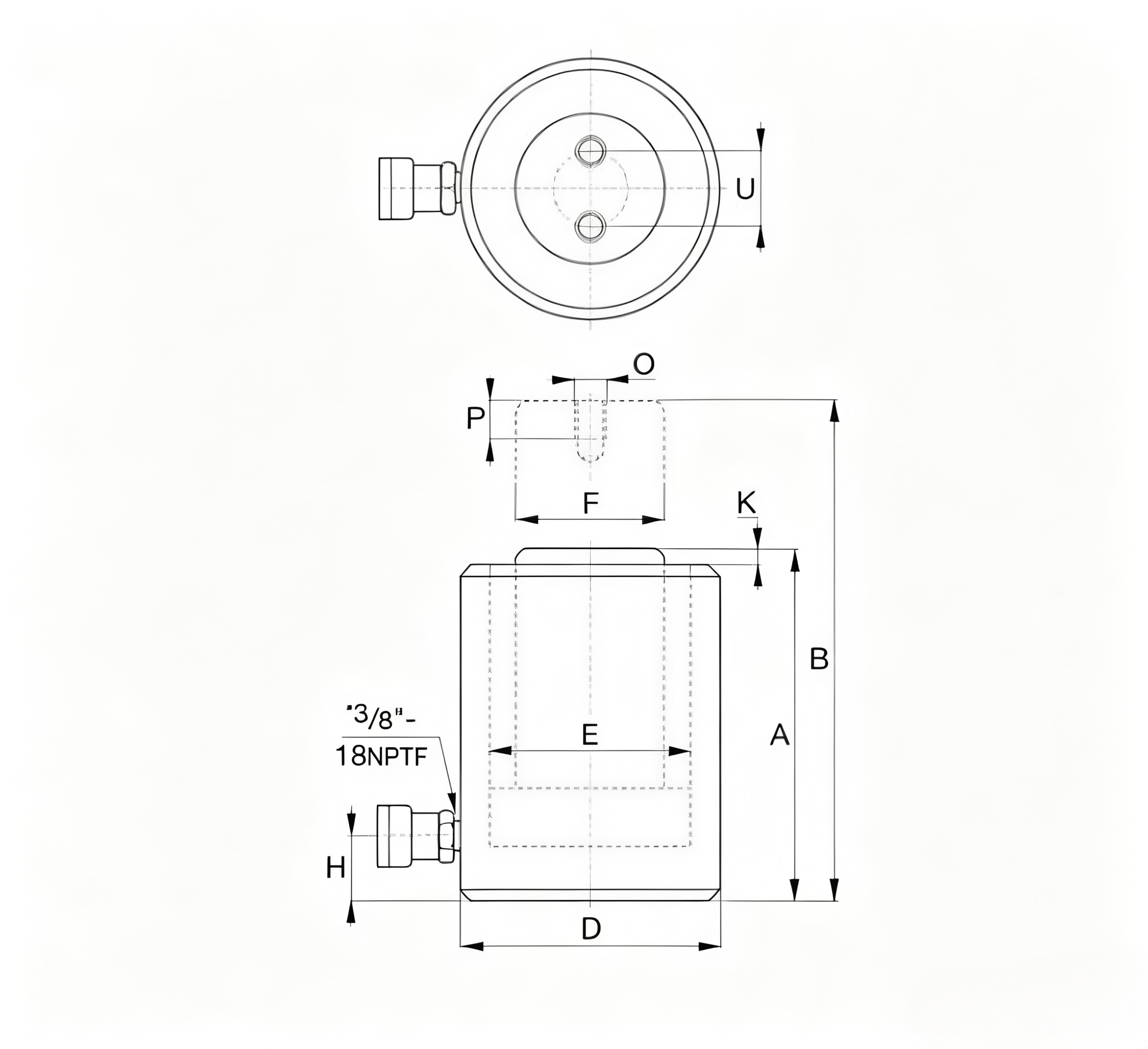

Product Detail Images
Product Series

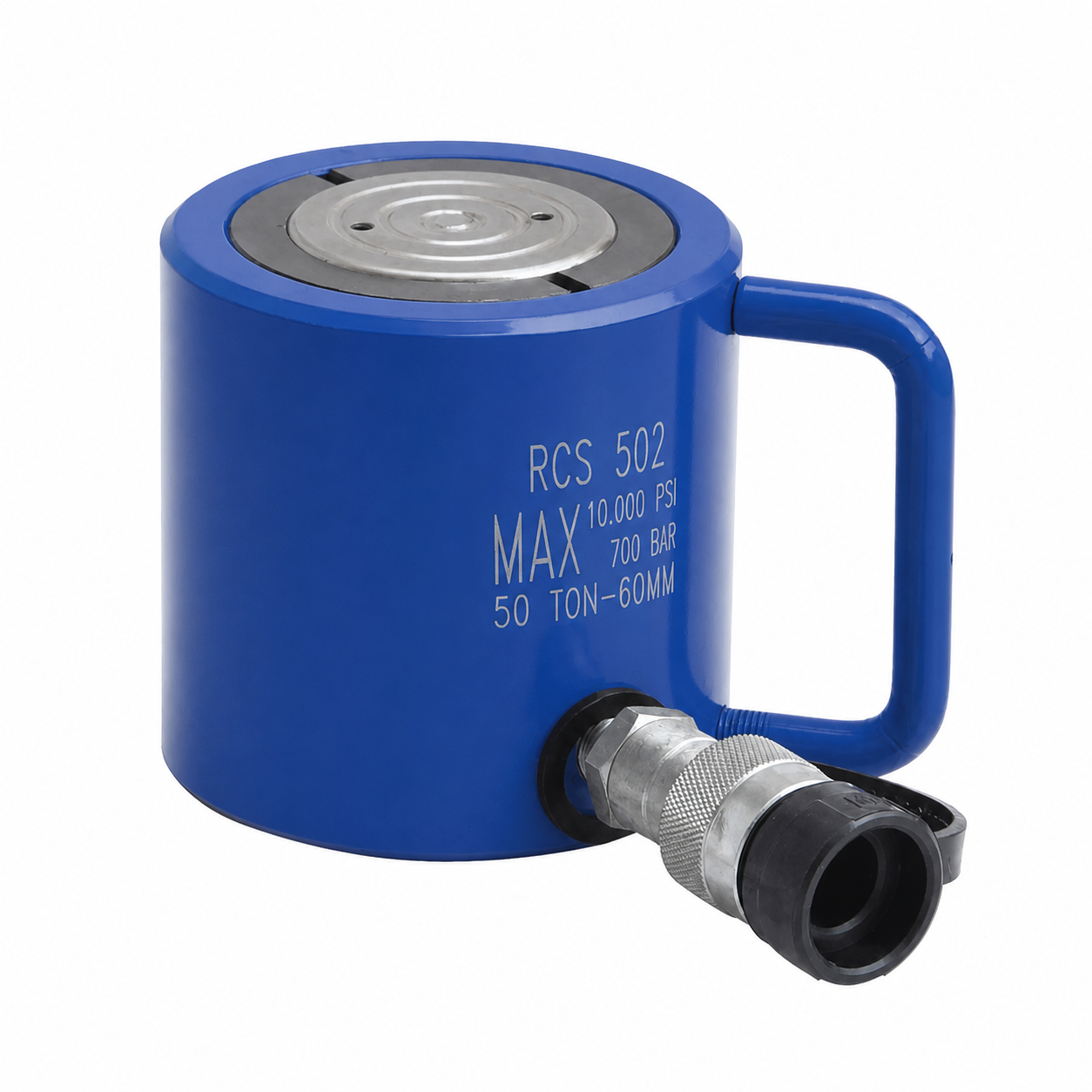

| Model | Load Capacity (tons) | Fuel used (cm³) | Stroke (mm) | Height (mm) | Outer Diameter (mm) | Inner Diameter (mm) | Spindle Diameter (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| RCS-101 | 10 | 55 | 38 | 88 | 69 | 42.9 | 38.1 | 4.1 |
| RCS-201 | 20 | 129 | 45 | 98 | 92 | 60.5 | 50.8 | 5 |
| RCS-302 | 30 | 261 | 62 | 117 | 101 | 73.2 | 66.5 | 6.8 |
| RCS-502 | 50 | 373 | 60 | 122 | 124 | 88.9 | 69.8 | 10.9 |
| RCS-1002 | 100 | 722 | 57 | 141 | 165 | 127 | 92.2 | 22.7 |
