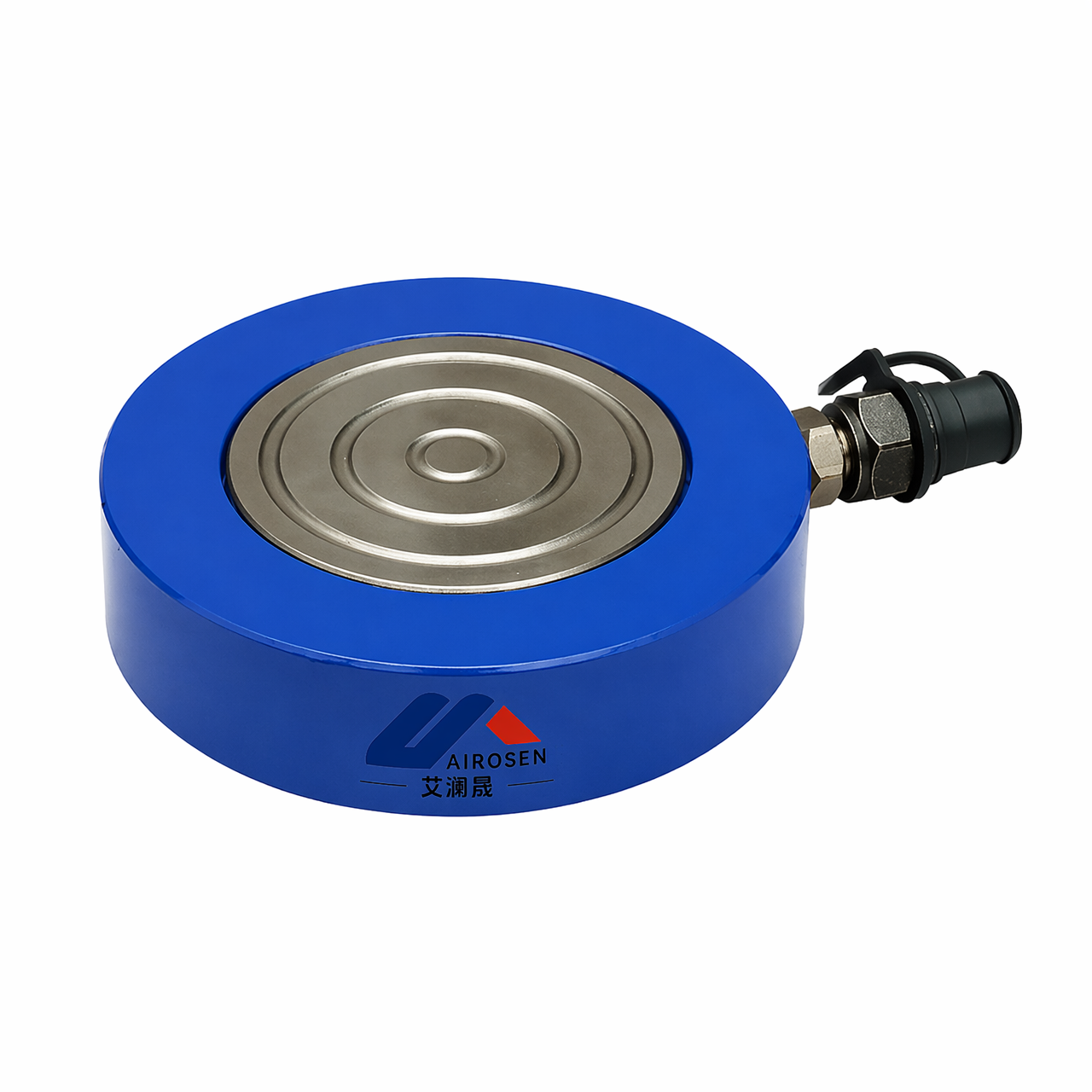

RTC Series, Ultra-Thin Hydraulic Cylinders
High-pressure, low-profile hydraulic cylinders are primarily used in space-constrained environments, such as main engine adjustments in shipyards and turbine lifting during power plant maintenance.
Product Inquiry
Product Description
Series:RTC
Product Line:Thin Pressure Cylinder
- •An elastic seal at the top prevents contaminants from entering the cylinder, extending its service life.
- •Top overflow port automatically relieves pressure when the plunger exceeds its working stroke, ensuring safety and convenience.
- •The pressure at the piston end is 1.5 times the rated working pressure.
- •Compared to other cylinders of the same tonnage, it features higher strength in key components and a longer stroke.
- •All cylinder models are coated with CoCr tungsten carbide.
- •Extreme operating pressure 150 MPa
- •Ideal for more compact spaces
- •Single-acting, load return
Considered Secure
The manufacturer's rated load and stroke are maximum safety limits. Best practice recommends using no more than 80% of these ratings!
Product Specifications
Capacity:
5-200 Ton
Maximum Operating Pressure:
150 MPa
Folded Height:
30-35mm
Itinerary:
10mm
Extended Height:
40-45mm
Condition:
G1/4
Return Type:
Single-acting, load return
Surface Finish:
Body corrosion protection

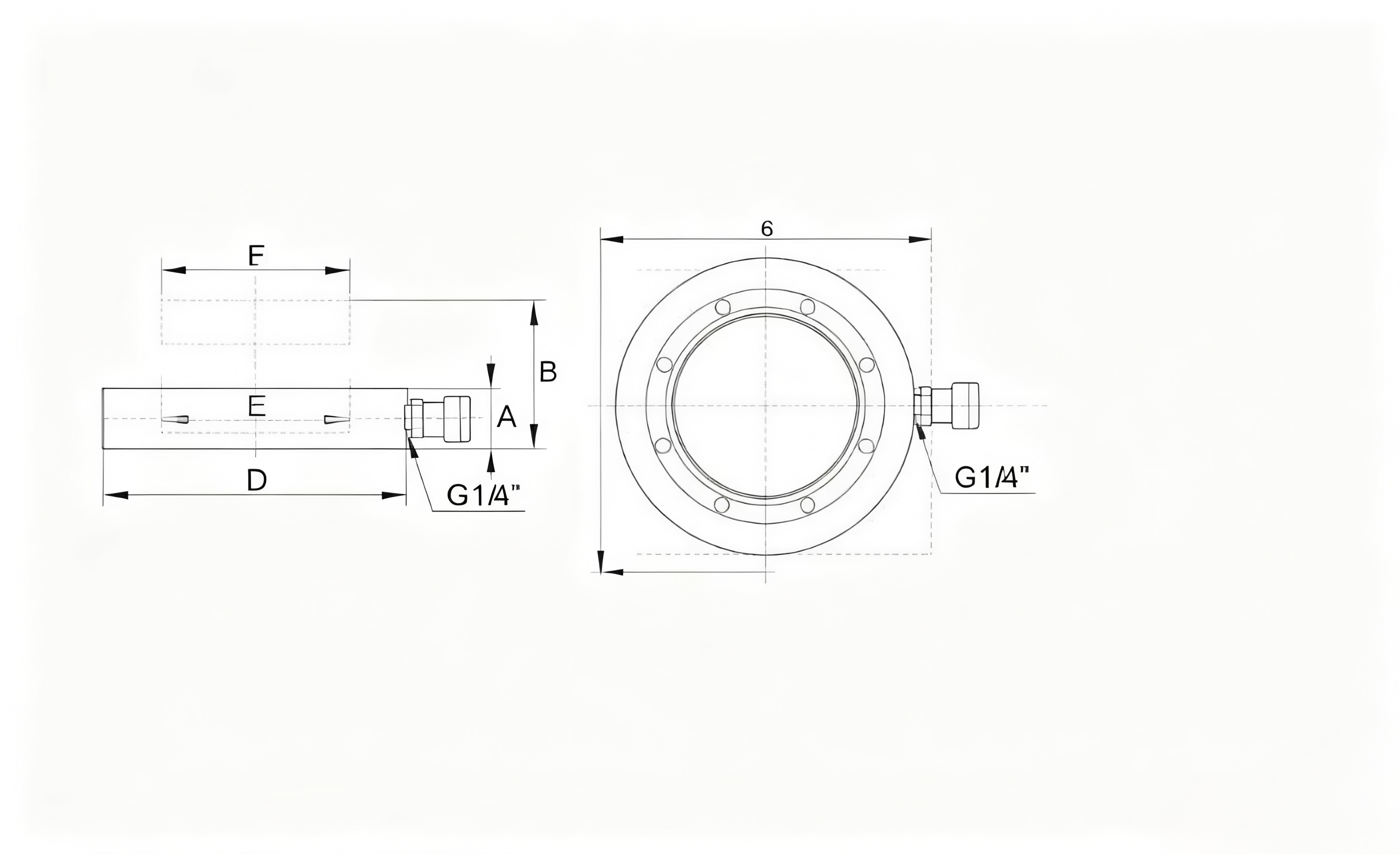

Product Detail Images
Product Series
| Model | Load (t) | Maximum Working Pressure (MPa) | Stroke (mm) | Fuel Capacity (ml) | Effective Area (cm²) | Outer Diameter (mm) | Inner Diameter (mm) | Interface Dimensions (mm) | Minimum Height (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| STC-05B5 | 5 | 150 | 10 | 3.5 | 3.46 | 60 | 21 | G1/4 | 30 | 0.77 |
| STC-05B10 | 10 | 150 | 10 | 7.1 | 7.06 | 70 | 30 | G1/4 | 30 | 1.1 |
| STC-025B1 | 25 | 150 | 10 | 17.3 | 17.34 | 90 | 47 | G1/4 | 30 | 1.5 |
| STC-050B1 | 50 | 150 | 10 | 38.5 | 38.46 | 118 | 70 | G1/4 | 30 | 2.6 |
| STC-100B1 | 100 | 150 | 10 | 69.4 | 69.36 | 152 | 94 | G1/4 | 30 | 4.3 |
| STC-150B1 | 150 | 150 | 10 | 105.6 | 105.62 | 180 | 116 | G1/4 | 30 | 6.8 |
| STC-200B1 | 200 | 150 | 10 | 136.8 | 136.77 | 204 | 132 | G1/4 | 35 | 9 |
