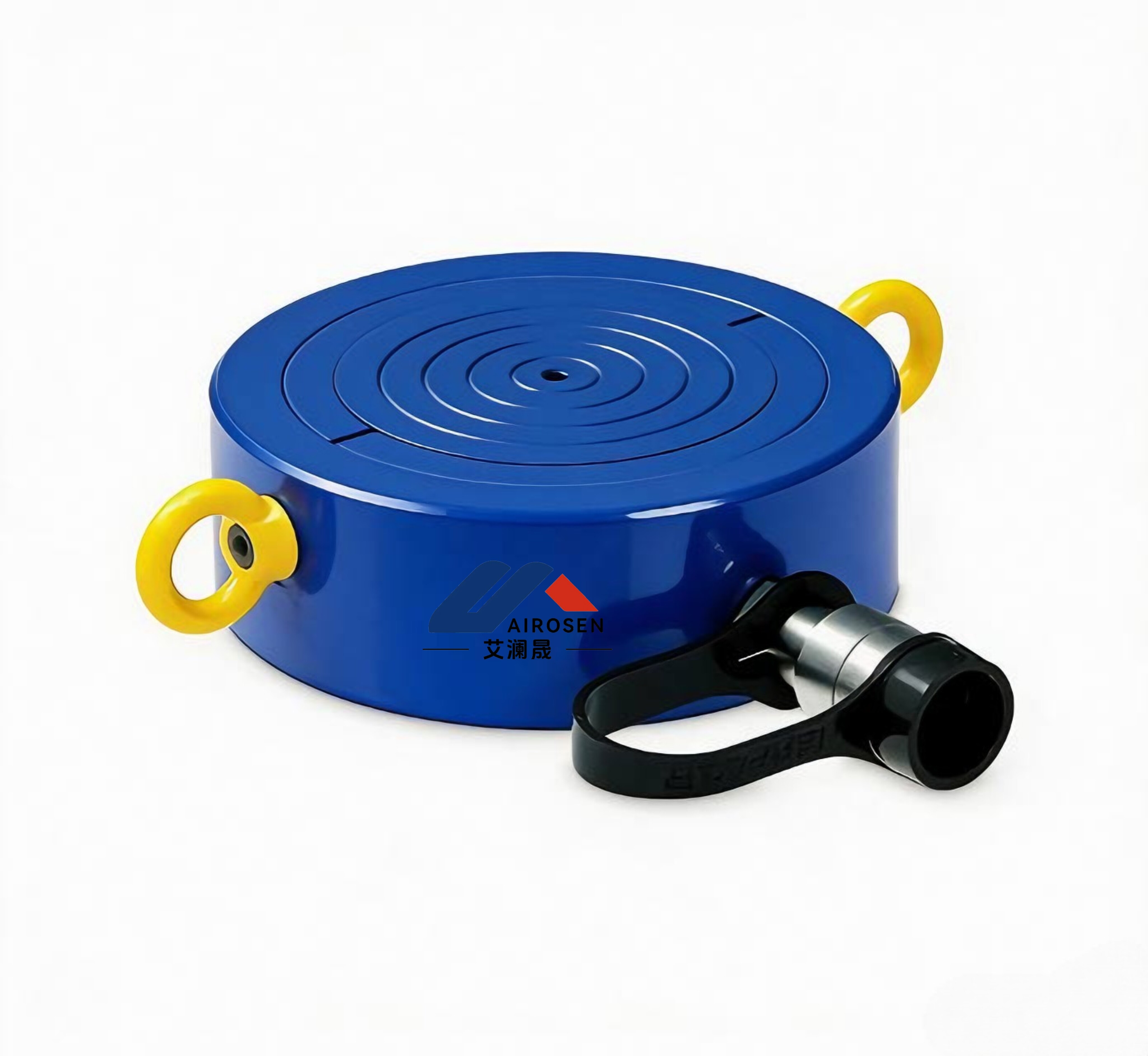

Compact Hydraulic Cylinder
The thin hydraulic pancake cylinder is an ultra-flat, single-acting load-return cylinder equipped with a stop ring to limit maximum stroke.
Product Inquiry
Product Description
- •The CULP series low-profile ultra-thin hydraulic cylinders (also known as hydraulic bolt tensioners) deliver an impressive power-to-weight ratio, making them ideal for applications where other solutions won't fit.
- •In single-acting spring-return designs, the tonnage range is 10 to 200 tons (97-3077 kN), with a folded height of 108-255 mm (275-65 mm).
- •The stop ring limits the maximum travel.
Security Notice
The manufacturer's rated capacity is the maximum safe limit. Best practice encourages using only 80% of these ratings!
Product Specifications
Capacity:
10-200 Ton
Maximum Operating Pressure:
70 MPa
Folded Height:
27.5-65mm
Itinerary:
6mm
Extended Height:
33.5-7 1mm
Return Type:
Single-acting, load return
Surface Finish:
Carbonitriding Surface Treatment
Product Series
| Model | Load (tons) | Minimum Height (mm) | Overall Height (mm) | Piston Diameter (mm) | Weight (kg) |
|---|---|---|---|---|---|
| CULP10 | 10 | 27.5 | 72 | 38 | 1.5 |
| CULP20 | 20 | 32 | 90 | 55 | 2 |
| CULP30 | 30 | 38 | 105 | 67 | 2.6 |
| CULP50 | 50 | 44 | 140 | 80 | 6 |
| CULP100 | 100 | 65 | 195 | 105 | 11.5 |
