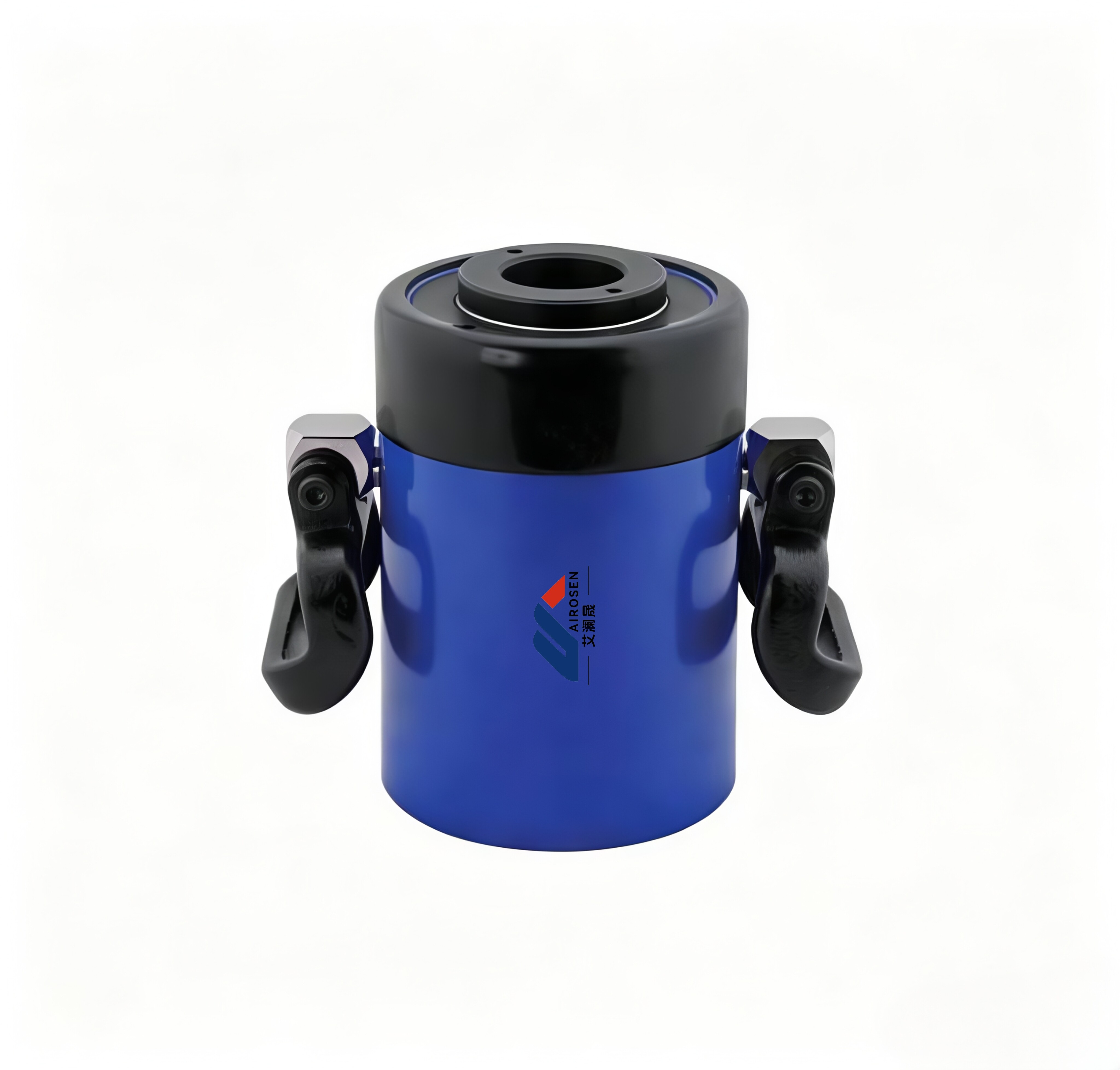

RCH Series, Single-Acting Hollow Plunger Hydraulic Cylinders
Hollow plunger design for push and pull applications
Product Inquiry
Product Description
Series:RCH Series
Product Line:Single-acting hollow plunger hydraulic cylinder
- •Hollow plunger design for push and pull applications
- •Low-profile, high-head design for narrow spaces
- •The hydraulic cylinder can support maximum load even at full stroke.
- •External threads facilitate secure fastening, and each unit comes with a protective cover.
- •The main shaft and hydraulic cylinder bore are hard-chromed for wear resistance and corrosion protection, with spring retraction.
- •Dust ring design protects the piston and cylinder bore from contamination, extending service life.
- •Install the nut to prevent excessive spindle elongation.
- •Powder-coated finish for an attractive, corrosion- and rust-resistant surface
- •All models include 3/8NPT quick-connect fittings and dust caps.
Considered Secure
The manufacturer's rated capacity is the maximum safe limit. Best practice encourages using only 80% of these ratings!
Product Specifications
Capacity:
12-100 Ton
Itinerary:
8-155mm
Folded Height:
55-330mm
Maximum Operating Pressure:
70 MPa
Weight:
1.5-63Kg

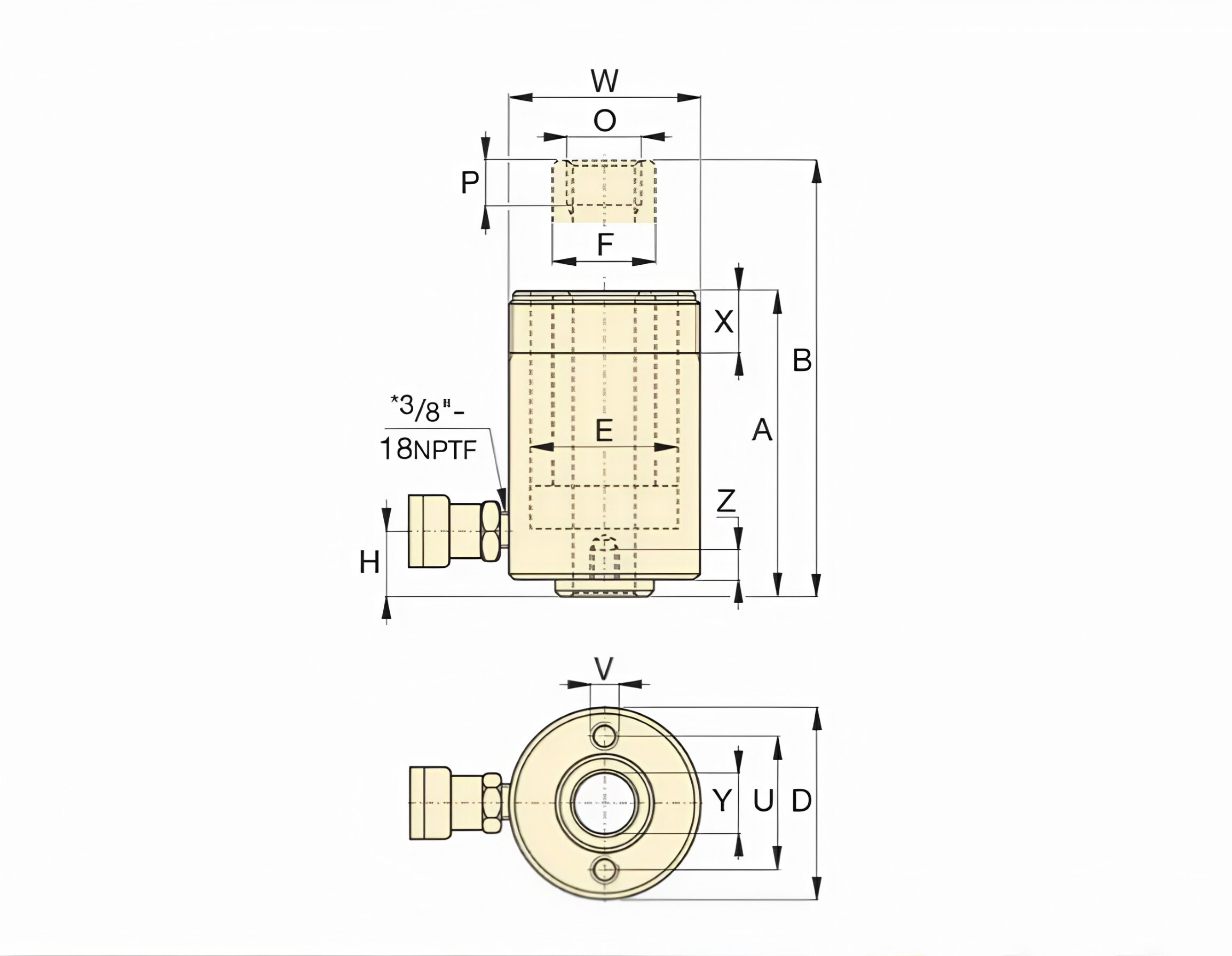

Size
Product Series
| Model | Load/ton | Travel Distance/mm | Closed height/mm | Bore diameter/mm | Spindle Diameter (mm) | Fuel Volume/cm³ | Weight / kg |
|---|---|---|---|---|---|---|---|
| RCH-120 | 12 | 8 | 55 | 69 | 35.1 | 14 | 1.5 |
| RCH-121 | 12 | 42 | 120 | 69 | 35.1 | 75 | 2.8 |
| RCH-123 | 12 | 76 | 184 | 69 | 35.1 | 136 | 4.4 |
| RCH-202 | 20 | 49 | 162 | 98 | 54.1 | 151 | 7.7 |
| RCH-204 | 20 | 102 | 242 | 98 | 54.1 | 311 | 10 |
| RCH-206 | 20 | 155 | 306 | 98 | 54.1 | 476 | 14.1 |
| RCH-302 | 30 | 64 | 178 | 114 | 63.5 | 298 | 10.9 |
| RCH-304 | 30 | 102 | 233 | 114 | 63.5 | 473 | 14.1 |
| RCH-306 | 30 | 155 | 330 | 114 | 63.5 | 722 | 21.8 |
| RCH-603 | 60 | 76 | 247 | 159 | 91.9 | 626 | 28.1 |
| RCH-606 | 60 | 153 | 323 | 159 | 91.9 | 1259 | 35.4 |
| RCH-1003 | 100 | 76 | 254 | 212 | 127 | 1011 | 63 |
