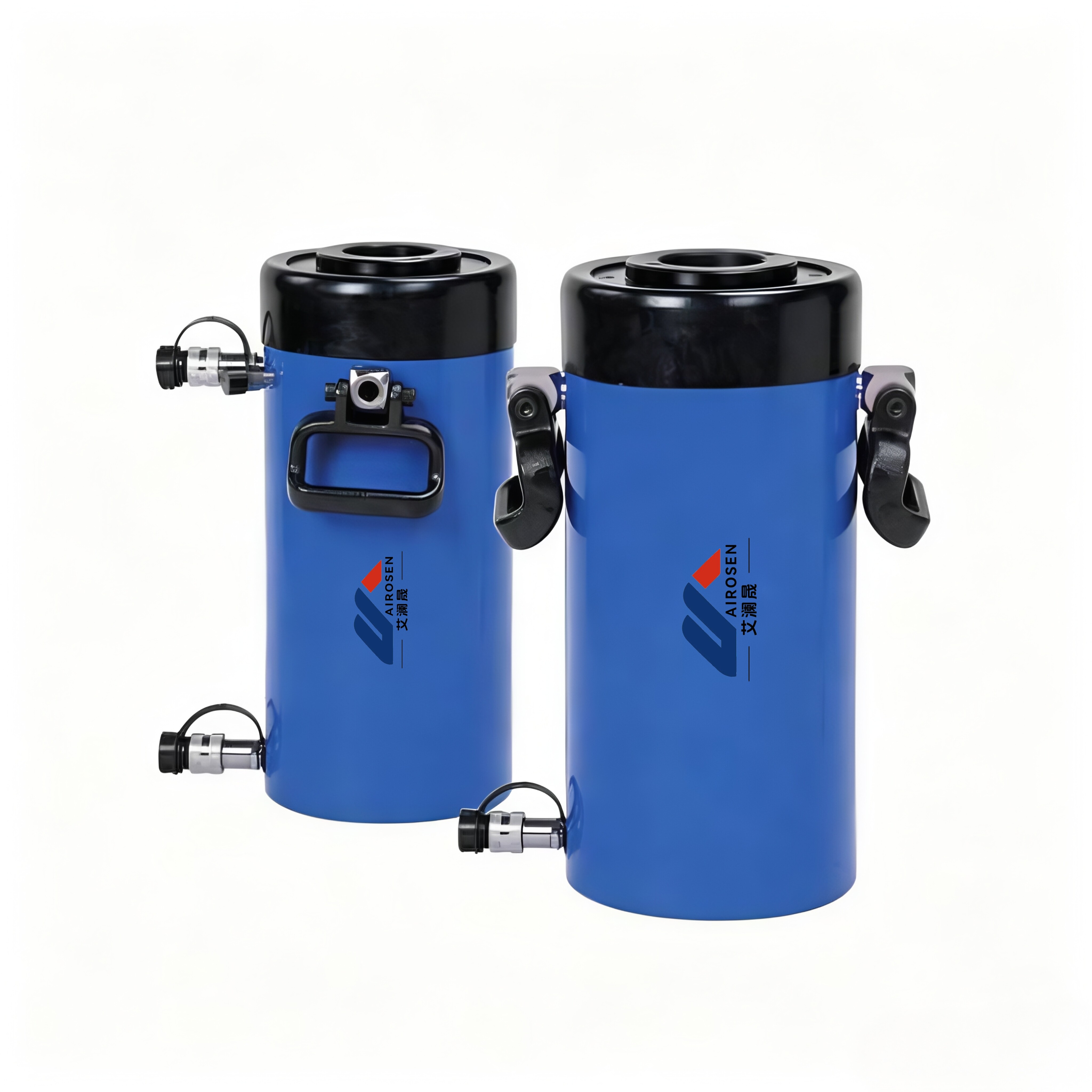

Double-acting hollow plunger hydraulic cylinder
双作用油缸能在恶劣的环境下胜任工作，适合长周期的工业应用场合；
Product Inquiry
Product Description
- •双作用油缸能在恶劣的环境下胜任工作，适合长周期的工业应用场合
- •双动设计，适用于推力及拉力之应用
- •外环螺纹、柱塞螺纹和底部安装孔便于安装（对大部分型号）
- •主轴硬铬处理，烤漆表面使耐腐蚀能力更强
- •可拆卸的鞍座，工作中可保护柱塞
- •内部安全阀防止意外过载
- •Dust wipers reduce contamination and extend hydraulic cylinder service life
Security Notice
The manufacturer's rated capacity is the maximum safe limit. Best practice encourages using only 80% of these ratings!
Product Specifications
生产能力：
30-150 Ton
Itinerary:
38-258mm
Maximum Operating Pressure:
70 MPa
Weight:
21-11 1kg

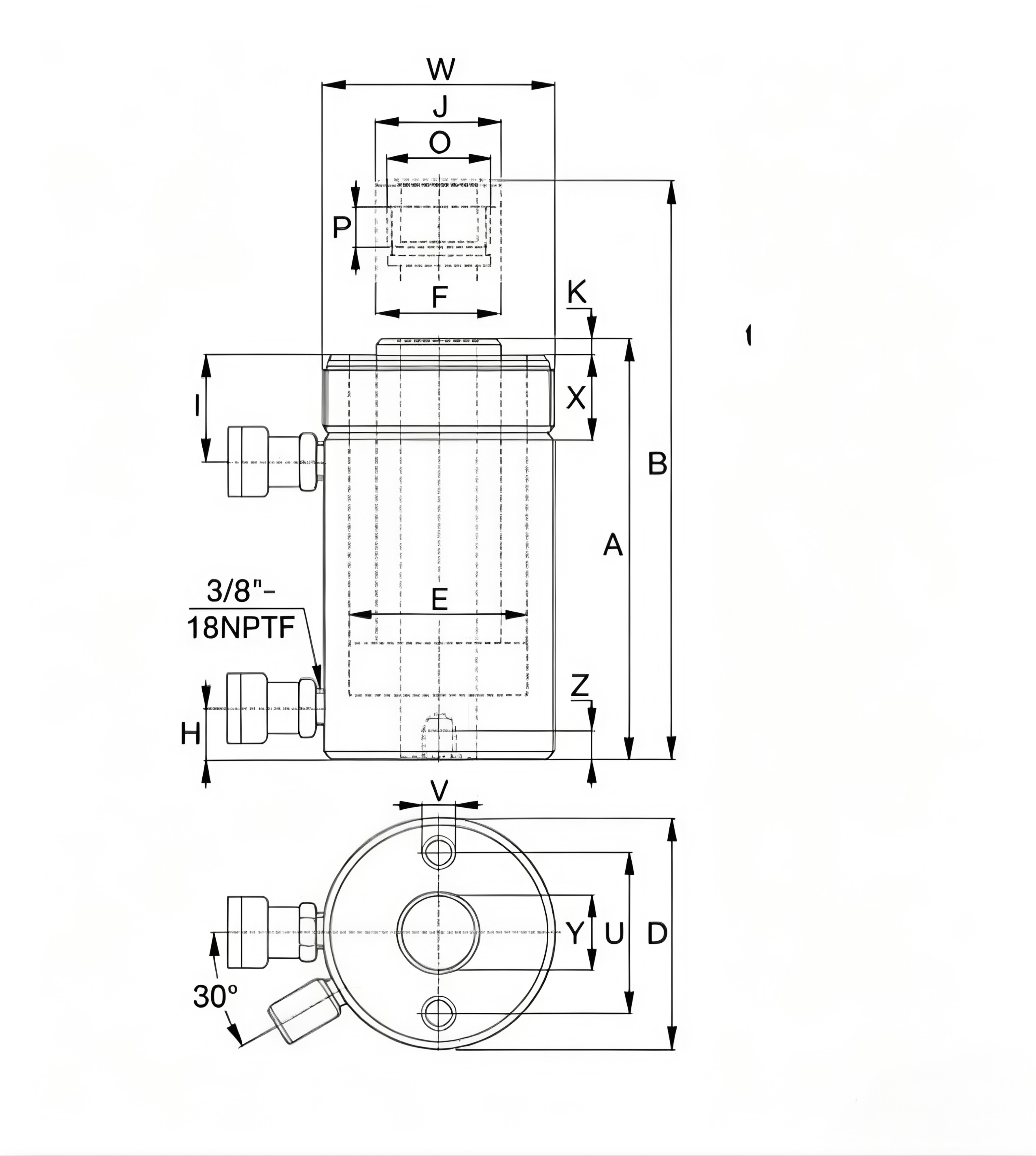

Product Detail Images
Product Series
| Model | Load Capacity (tons) | Use Fuel (cm³) | Itinerary (mm) | 大高 (mm) | Outer Diameter (mm) | 内径 (mm) | 主轴直径 (mm) | 中孔直径 (in) | Weight (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|
| Push | Pull | |||||||||
| RRH-307 | 30 | 21 | 829 | 178 | 330 | 114 | 88.9 | 63.5 | 33.3 | 21 |
| RRH-3010 | 30 | 21 | 1202 | 258 | 431 | 114 | 88.9 | 63.5 | 33.3 | 27 |
| RRH-603 | 60 | 38 | 733 | 89 | 247 | 159 | 123.9 | 92.2 | 54.1 | 28 |
| RRH-606 | 60 | 38 | 1366 | 166 | 323 | 159 | 123.9 | 92.2 | 54.1 | 35 |
| RRH-6010 | 60 | 38 | 2115 | 257 | 438 | 159 | 123.9 | 92.2 | 54.1 | 45 |
| RRH-1001 | 100 | 61 | 505 | 38 | 165 | 212 | 165.1 | 127 | 79.5 | 33 |
| RRH-1003 | 100 | 61 | 1011 | 76 | 254 | 212 | 165.1 | 127 | 79.5 | 61 |
| RRH-1006 | 100 | 61 | 2035 | 153 | 342 | 212 | 165.1 | 127 | 79.5 | 79 |
| RRH-10010 | 100 | 61 | 3420 | 257 | 460 | 212 | 165.1 | 127 | 79.5 | 106 |
| RRH-1508 | 150 | 72 | 4144 | 203 | 349 | 247 | 190.5 | 152.4 | 79.5 | 111 |
