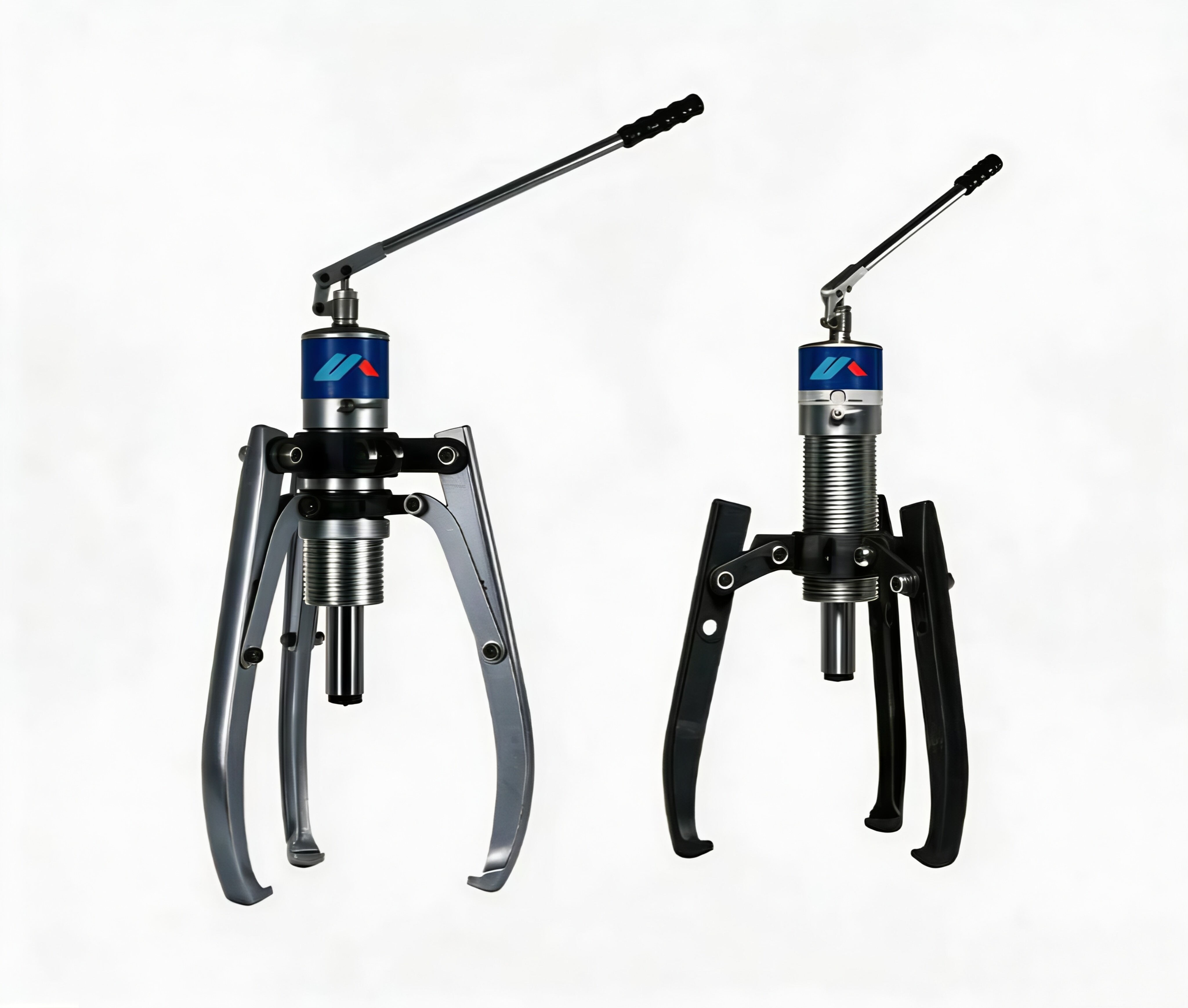

Integrated Hydraulic Puller
/3 and 3 jaw combination design, offering the stability of a 3 jaw puller with more reliable gripping force, plus 2 jaw functionality; also suitable for use in space-constrained environments.
Product Inquiry
Product Description
- •2/3 Jaw and Short-Jaw Combination Design: Offers the stability of a 3-jaw puller with more reliable gripping force, plus 2 jaw functionality—ideal for use in space-constrained environments.
- •Get two rotary encoders for the price of one.
- •Detachable handle with 360° pressure direction design for flexible use in confined spaces
- •Unique internal hydraulic safety valve design to extend cylinder life
- •Forged pull-arm design using high-strength German steel for long life and fast retraction.
- •Surface treated with three-layer electroplated nickel to prevent rust and wear.
- •The claw and frame structure are forged from high-strength alloy steel, ensuring resistance to deformation.
- •The hydraulic cylinder is machined from solid steel as a single integrated unit for a robust design with a high safety factor.
Security Notice
The manufacturer's rated capacity is the maximum safe limit. Best practice encourages using only 80% of these ratings!
Product Detail Images
IHP/IHP-S Series Dimension Drawings
Product Series
| Model | Capabilities (tons) | Rough L (mm) | Clearance D (mm) | Head H (mm) | Hook End (mm) | Main Body (mm) | Weight (kg) | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | E | F | G | ||||||
| IHP04 | 4 | 255 | 185 | 60 | 11 | 6 | 22 | 42 | 22 | 84 | 4.5 |
| IHP06 | 6 | 330 | 220 | 70 | 13 | 10 | 22 | 45 | 23 | 94 | 5.0 |
| IHP08 | 8 | 350 | 230 | 85 | 11 | 10 | 25 | 50 | 25 | 122 | 6.5 |
| IHP12 | 12 | 375 | 270 | 85 | 14 | 10 | 29 | 60 | 28 | 118 | 8.0 |
| IHP20 | 20 | 520 | 360 | 111 | 20 | 27 | 33 | 80 | 40 | 160 | 22 |
| IHP30 | 30 | 550 | 360 | 111 | 20 | 27 | 38 | 98 | 50 | 155 | 32 |
| IHP04S | 4 | 315 | 190 | 60 | 13 | 10 | 22 | 42 | 22 | 40 | 8.0 |
| IHP06S | 6 | 390 | 230 | 70 | 13 | 10 | 22 | 45 | 23 | 50 | 9.8 |
| IHP08S | 8 | 460 | 280 | 85 | 13 | 13 | 27.5 | 50 | 25 | 70 | 11.7 |
| IHP12S | 12 | 515 | 300 | 85 | 15 | 16.5 | 29 | 60 | 28 | 70 | 14.8 |
| IHP20S | 20 | 520 | 325 | 111 | 20 | 27 | 33 | 80 | 40 | 62 | 25.7 |
| IHP30S | 30 | 620 | 415 | 111 | 20 | 27 | 38 | 98 | 50 | 85 | 36.0 |
