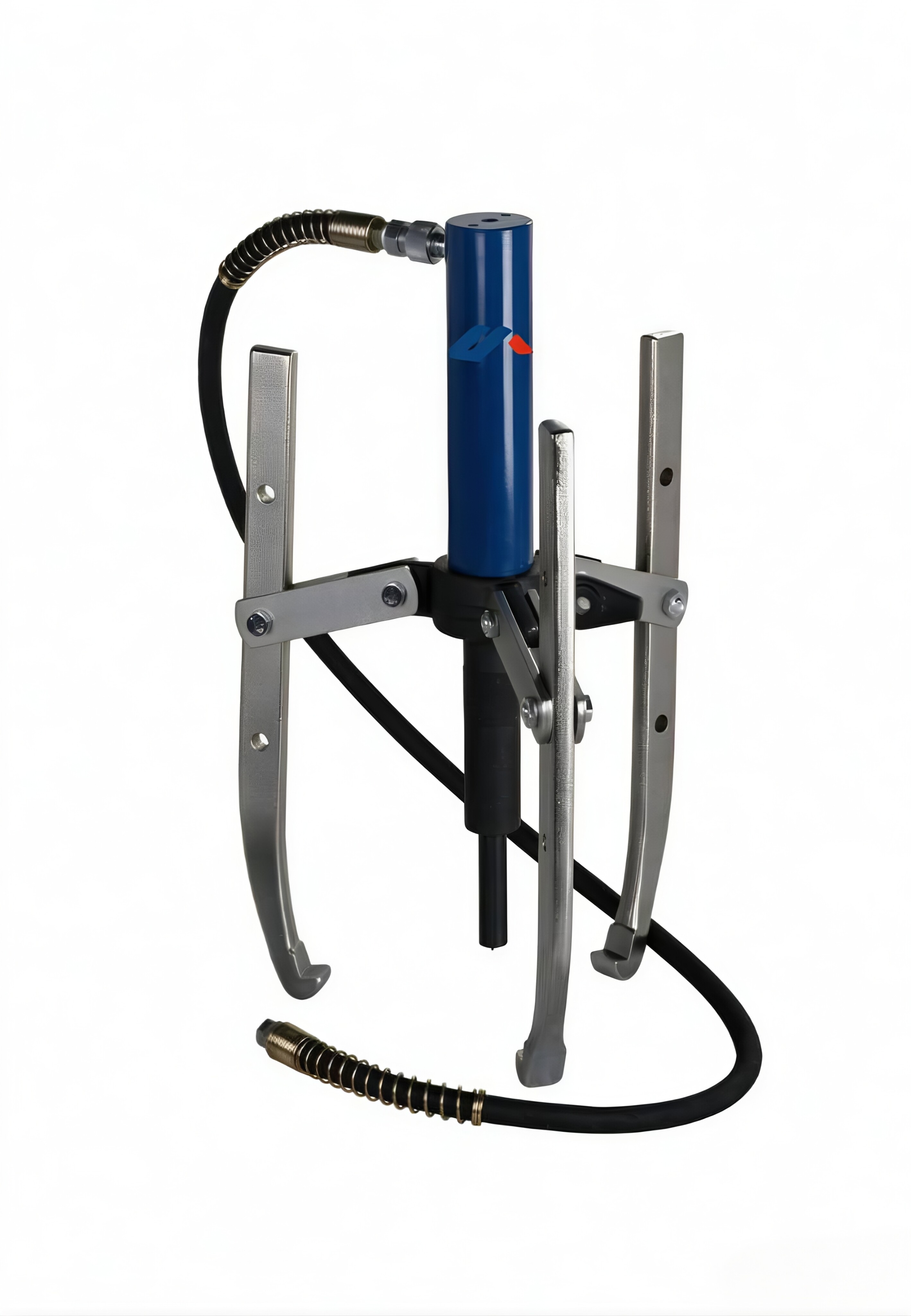

Split-type hydraulic puller
360° rotatable joint design allows users to operate the puller in any direction.
Product Inquiry
Product Description
- •360° rotatable joint design allows users to operate the puller in any direction;
- •Elastic pushpin design for accurate center positioning (detachable);
- •Easy to operate, with options ranging from 1 Ton to 30 Ton.
- •2/3 claws shared; the most efficient and cost-effective tool.
- •Hook and socket forged from chromium-manganese alloy steel, offering users the safest and most durable choice.
- •Hot-forged claw hook screws with manganese phosphate plating for rust resistance and long-lasting durability.
- •Includes an extension rod accessory so users can customize it as needed.
Security Notice
The manufacturer's rated capacity is the maximum safe limit. Best practice encourages using only 80% of these ratings!
Product Detail Images
Product Series

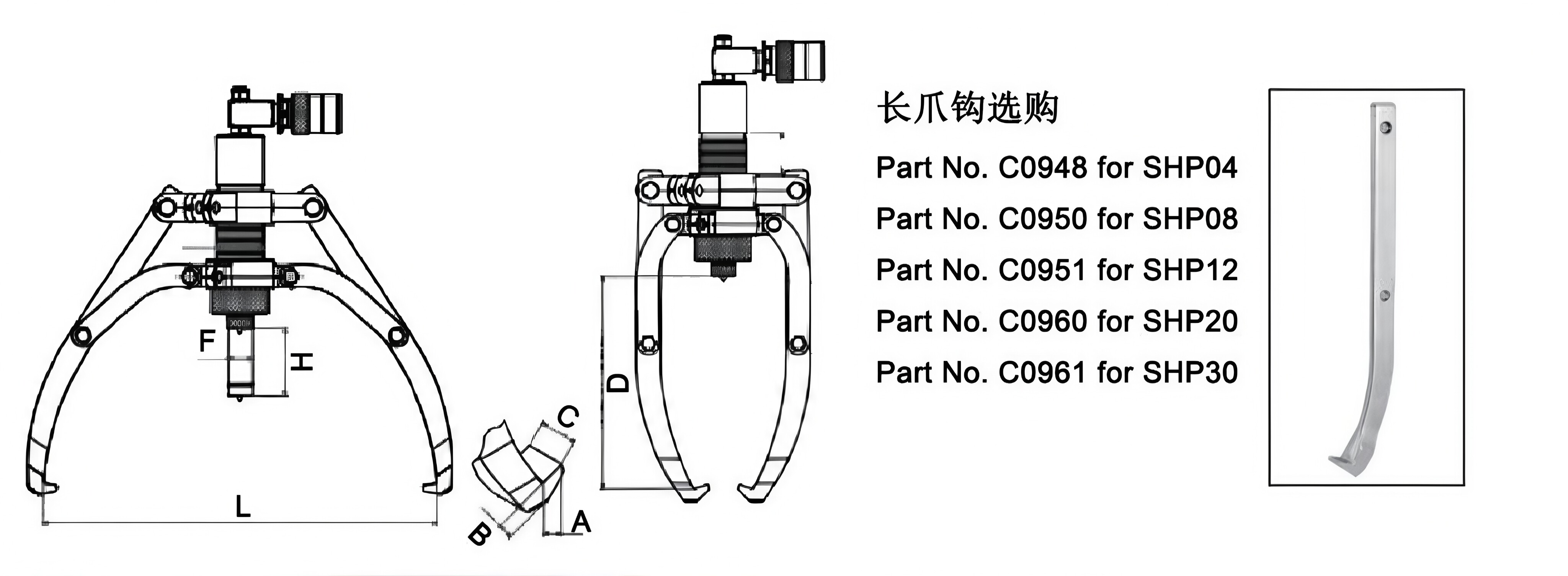

| Model | Capabilities (tons) | Rough L (mm) | Clearance D (mm) | Head H (mm) | Hook End (mm) | Main Body (mm) | Weight (kg) | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | E | F | G | ||||||
| SHP4 | 4 | 255 | 185 | 60 | 11 | 6 | 22 | 42 | 22 | 84 | 4.5 |
| SHP8 | 8 | 350 | 230 | 85 | 11 | 10 | 25 | 50 | 25 | 122 | 6.5 |
| SHP12 | 12 | 375 | 270 | 85 | 14 | 10 | 29 | 60 | 28 | 118 | 8.0 |
| SHP20 | 20 | 520 | 360 | 111 | 20 | 27 | 33 | 80 | 40 | 160 | 22 |
| SHP30 | 30 | 550 | 360 | 111 | 20 | 27 | 38 | 98 | 50 | 155 | 32 |
| SHP04S | 4 | 315 | 190 | 60 | 13 | 10 | 22 | 42 | 22 | 40 | 8.0 |
| SHP08S | 8 | 460 | 280 | 85 | 13 | 13 | 27.5 | 50 | 25 | 70 | 11.7 |
| SHP12S | 12 | 515 | 300 | 85 | 15 | 16.5 | 29 | 60 | 28 | 70 | 14.8 |
| SHP20S | 20 | 520 | 325 | 111 | 20 | 27 | 33 | 80 | 40 | 62 | 25.7 |
| SHP30S | 30 | 620 | 415 | 111 | 20 | 27 | 38 | 98 | 50 | 85 | 36.0 |
