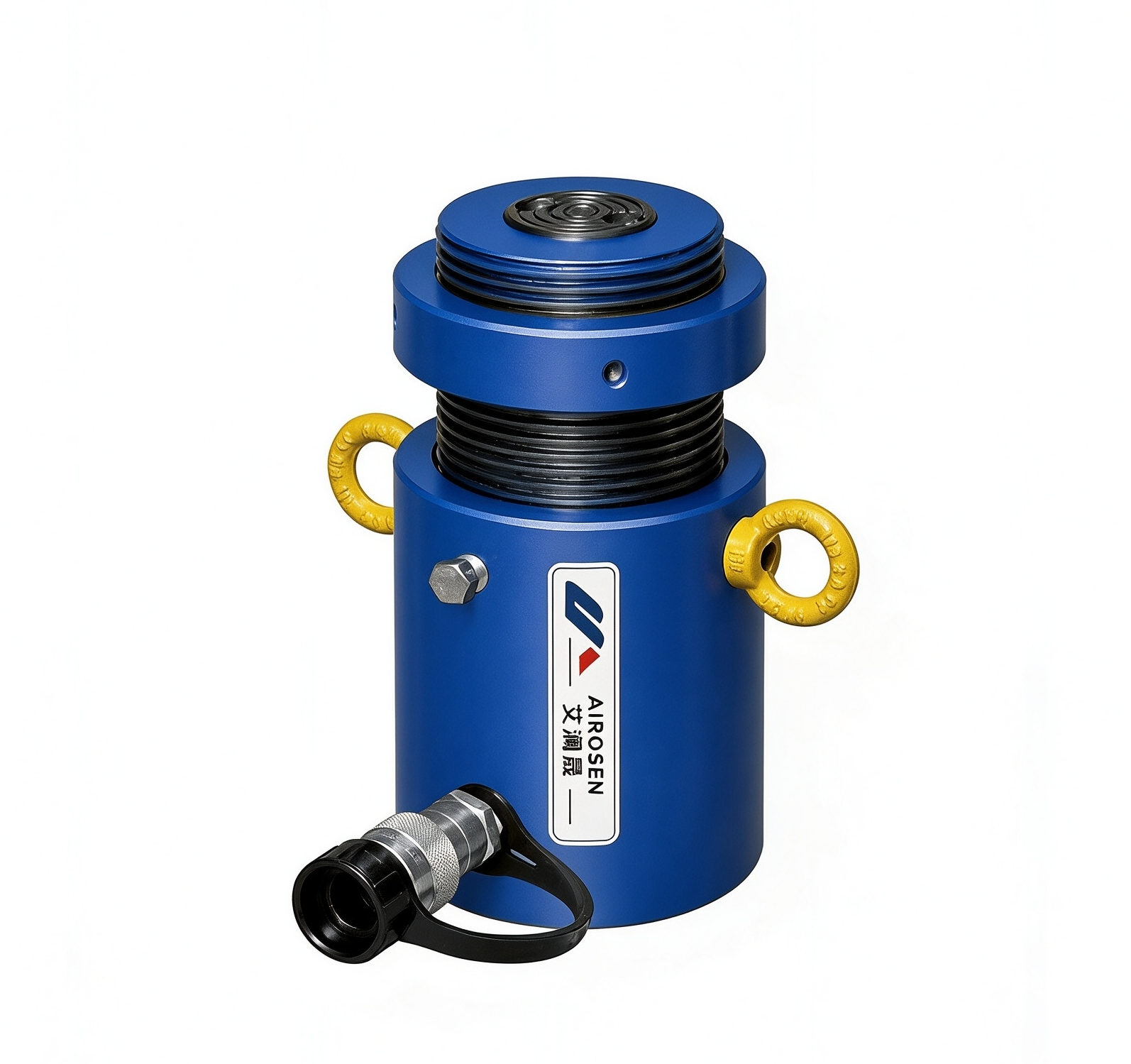

Single-acting hydraulic cylinder with locking nut

High-tonnage hydraulic cylinders are equipped with locking nuts to securely maintain mechanical loads over extended periods.

Product Inquiry

Product Description

Series:HCL Series

Product Line:Locking Nut Hydraulic Cylinder

•Maintains mechanical load securely over time. Low-friction lock nuts rotate easily for effortless, time-saving operation.
•Load return design — simple to use and maintain; withstands up to 10% lateral load, reaching a maximum of 90% of full stroke.
•Nitrocarburized surfaces resist lateral loads and cyclic wear.
•Overflow port as stroke limiter – prevents plunger ejection; base mounting holes are standard.

Security Notice

The manufacturer's rated capacity is the maximum safe limit. Best practice encourages using only 80% of these ratings!

Product Specifications

Capacity:

50-1000 Ton

Itinerary:

50-300mm

Folded Height:

164-734mm

Maximum Operating Pressure:

70 MPa

Weight:

17-1460 kg

Product Series

Model	Tonnage (T)	Stroke (mm)	Height (mm)	Outer Diameter (mm)	Fuel (cm³)	Weight (kg)
HCL-502	50	50	164	95	393	17
HCL-504	50	100	214	95	785	22
HCL-506	50	150	264	95	1178	27
HCL-508	50	200	314	95	1571	32
HCL-5010	50	250	364	95	1963	38
HCL-5012	50	300	414	95	2356	43
HCL-1002	100	50	187	140	716	35
HCL-1004	100	100	237	140	1431	44
HCL-1006	100	150	287	140	2147	54
HCL-1008	100	200	337	140	2863	63
HCL-10010	100	250	387	140	3578	73
HCL-10012	100	300	437	140	4294	82
HCL-1502	150	50	209	180	1069	59
HCL-1504	150	100	259	180	2138	73
HCL-1506	150	150	309	180	3207	87
HCL-1508	150	200	359	180	4276	102
HCL-15010	150	250	409	180	5346	116
HCL-15012	150	300	459	180	6415	130
HCL-2002	200	50	238	210	1418	85
HCL-2004	200	100	288	210	2835	105
HCL-2006	200	150	338	210	4253	124
HCL-2008	200	200	388	210	5671	143
HCL-20010	200	250	438	210	7088	163
HCL-20012	200	300	488	210	8506	182
HCL-2502	250	50	249	250	1815	119
HCL-2504	250	100	299	250	3631	143
HCL-2506	250	150	349	250	5446	167
HCL-2508	250	200	399	250	7261	192
HCL-25010	250	250	449	250	9076	216
HCL-25012	250	300	499	250	10892	240
HCL-3002	300	50	278	280	2169	158
HCL-3004	300	100	328	280	4337	186
HCL-3006	300	150	378	280	6506	215
HCL-3008	300	200	428	280	8675	244
HCL-30010	300	250	478	280	10843	272
HCL-30012	300	300	528	280	13012	301
HCL-4002	400	50	317	320	2863	236
HCL-4004	400	100	367	320	5726	274
HCL-4006	400	150	417	320	8588	311
HCL-4008	400	200	467	320	11451	349
HCL-40010	400	250	517	320	14314	387
HCL-40012	400	300	567	320	17177	425
HCL5002	500	50	357	380	3653	341
HCL5004	500	100	407	380	7306	390
HCL5006	500	150	457	380	10959	439
HCL5008	500	200	507	380	14612	489
HCL50010	500	250	557	380	18265	538
HCL50012	500	300	607	380	21918	587
HCL002	600	50	380	420	4276	427
HCL004	600	100	430	420	8553	484
HCL006	600	150	480	420	12829	541
HCL008	600	200	530	420	17106	598
HCL0010	600	250	580	420	21382	655
HCL0012	600	300	630	420	25659	712
HCL8002	800	50	430	490	5821	668
HCL8004	800	100	480	490	11642	746
HCL8006	800	150	530	490	17462	825
HCL8008	800	200	580	490	23283	904
HCL80010	800	250	630	490	29104	982
HCL80012	800	300	680	490	34925	1061
HCL10002	1000	50	484	550	7603	959
HCL10004	1000	100	534	550	15205	1059
HCL10006	1000	150	584	550	22808	1160
HCL10008	1000	200	634	550	30411	1260
HCL100010	1000	250	684	550	38013	1360
HCL100012	1000	300	734	550	45616	1460
