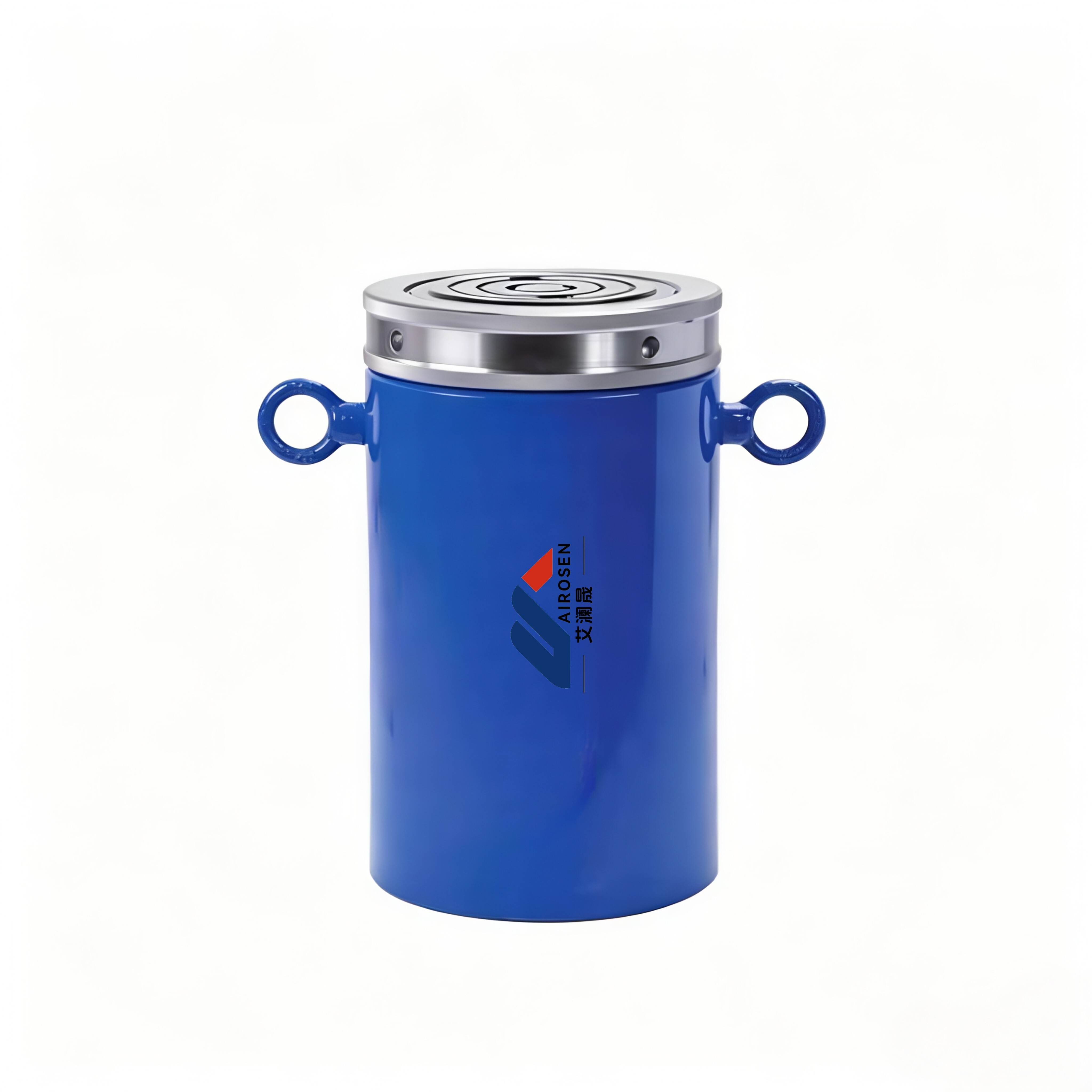

Single-acting hydraulic cylinder with locking nut
Single-acting, load retraction; mechanical nut locking ensures safer load retention.
Product Inquiry
Product Description
- •Single-acting, load retraction
- •Mechanical nut locking for safer load security
- •The baked enamel finish provides superior corrosion resistance.
- •The overflow hole also limits the travel stroke.
- •Tolerable off-center load reaches 5% of the hydraulic cylinder's rated capacity.
- •Interchangeable hard-groove saddles are standard.
- •All models include a CR-400 quick-connect fitting and dust cap.
- •Load capacity 1000 tons and above; stroke up to 100, 200, and 300 mm
Security Notice
The manufacturer's rated capacity is the maximum safe limit. Best practice encourages using only 80% of these ratings!
Product Specifications
Capacity:
50-1000 Ton
Itinerary:
50-300mm
Maximum Operating Pressure:
70 MPa
Weight:
15-73Kg

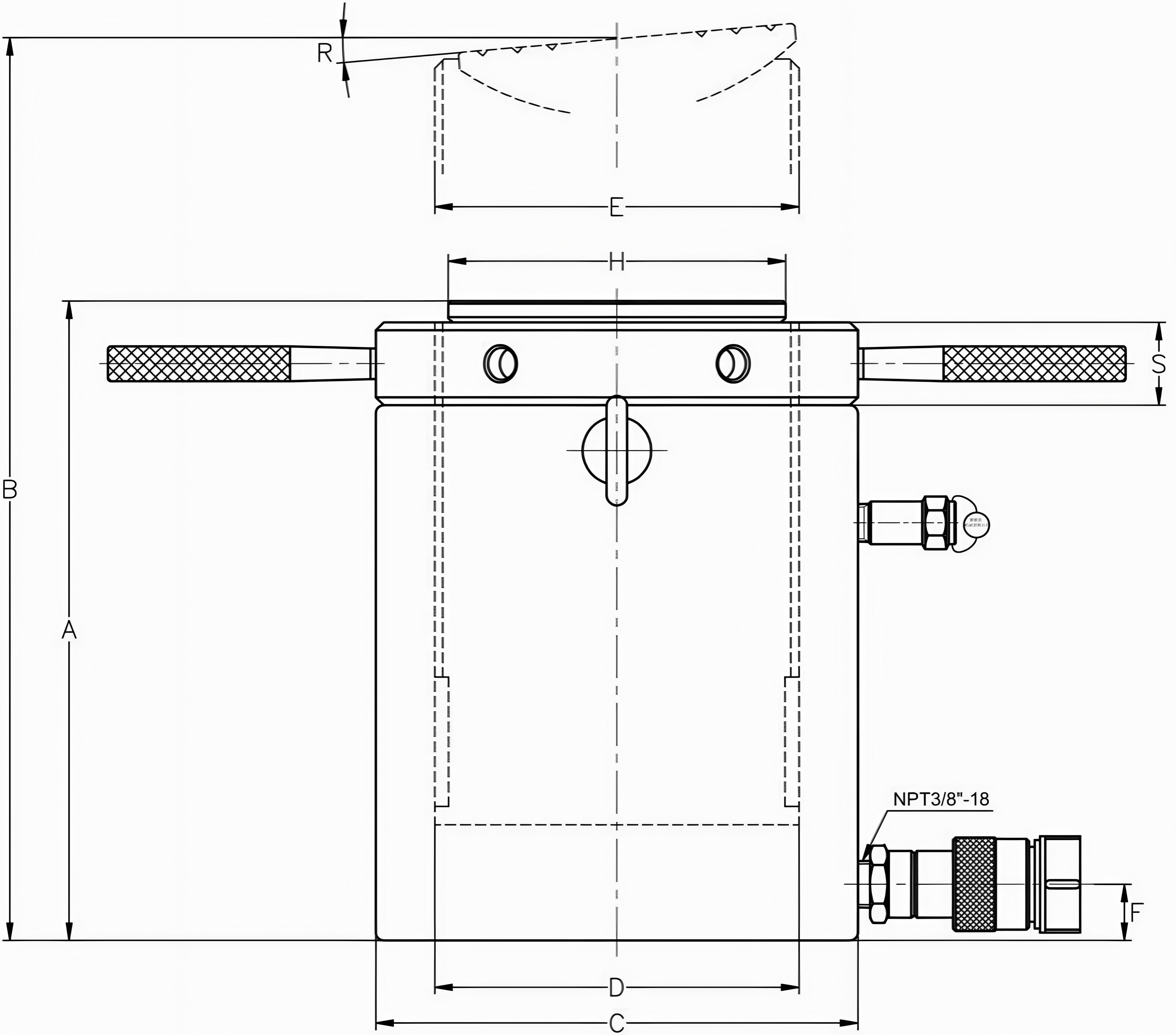

Product Detail Images
Product Series
| Model | Load Capacity (tons) | Use Fuel (cm³) | Itinerary in | High in | Extended Height in | Outer Diameter in | Effective Area (cm²) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| HCL-502 | 50 | 393 | 50 | 164 | 214 | 130 | 70.9 | 17 |
| HCL-504 | 50 | 785 | 100 | 214 | 314 | 130 | 70.9 | 22 |
| HCL-506 | 50 | 1178 | 150 | 264 | 414 | 130 | 70.9 | 27 |
| HCL-508 | 50 | 1571 | 200 | 314 | 514 | 130 | 70.9 | 32 |
| HCL-5010 | 50 | 1963 | 250 | 364 | 614 | 130 | 70.9 | 38 |
| HCL-5012 | 50 | 2356 | 300 | 414 | 714 | 130 | 70.9 | 43 |
| HCL-1002 | 100 | 716 | 50 | 187 | 237 | 175 | 132.7 | 35 |
| HCL-1004 | 100 | 1431 | 100 | 237 | 337 | 175 | 132.7 | 44 |
| HCL-1006 | 100 | 2147 | 150 | 287 | 437 | 175 | 132.7 | 54 |
| HCL-1008 | 100 | 2863 | 200 | 337 | 537 | 175 | 132.7 | 63 |
| HCL-10010 | 100 | 3578 | 250 | 387 | 637 | 175 | 132.7 | 73 |
| HCL-10012 | 100 | 4294 | 300 | 437 | 737 | 175 | 132.7 | 82 |
| HCL-1502 | 150 | 1069 | 50 | 209 | 259 | 215 | 198.6 | 59 |
| HCL-1504 | 150 | 2138 | 100 | 259 | 359 | 215 | 198.6 | 73 |
| HCL-1506 | 150 | 3207 | 150 | 309 | 459 | 215 | 198.6 | 87 |
| HCL-1508 | 150 | 4276 | 200 | 359 | 559 | 215 | 198.6 | 102 |
| HCL-15010 | 150 | 5346 | 250 | 409 | 659 | 215 | 198.6 | 116 |
| HCL-15012 | 150 | 6415 | 300 | 459 | 759 | 215 | 198.6 | 130 |
| HCL-2002 | 200 | 1418 | 50 | 238 | 288 | 250 | 265.6 | 85 |
| HCL-2004 | 200 | 2835 | 100 | 288 | 388 | 250 | 265.6 | 105 |
| HCL-2006 | 200 | 4253 | 150 | 338 | 488 | 250 | 265.6 | 124 |
| HCL-2008 | 200 | 5671 | 200 | 388 | 588 | 250 | 265.6 | 143 |
| HCL-20010 | 200 | 7088 | 250 | 438 | 688 | 250 | 265.6 | 163 |
| HCL-20012 | 200 | 8506 | 300 | 488 | 788 | 250 | 265.6 | 182 |
| HCL-2502 | 250 | 1815 | 50 | 249 | 299 | 280 | 366.1 | 119 |
| HCL-2504 | 250 | 3631 | 100 | 299 | 399 | 280 | 366.1 | 143 |
| HCL-2506 | 250 | 5446 | 150 | 349 | 499 | 280 | 366.1 | 167 |
| HCL-2508 | 250 | 7261 | 200 | 399 | 599 | 280 | 366.1 | 192 |
| HCL-25010 | 250 | 9076 | 250 | 449 | 699 | 280 | 366.1 | 216 |
| HCL-25012 | 250 | 10892 | 300 | 499 | 799 | 280 | 366.1 | 240 |
| HCL-3002 | 300 | 2169 | 50 | 278 | 328 | 305 | 424.1 | 158 |
| HCL-3004 | 300 | 4337 | 100 | 328 | 428 | 305 | 424.1 | 186 |
| HCL-3006 | 300 | 6506 | 150 | 378 | 528 | 305 | 424.1 | 215 |
| HCL-3008 | 300 | 8675 | 200 | 428 | 628 | 305 | 424.1 | 244 |
| HCL-30010 | 300 | 10843 | 250 | 478 | 728 | 305 | 424.1 | 272 |
| HCL-30012 | 300 | 13012 | 300 | 528 | 828 | 305 | 424.1 | 301 |
| HCL-4002 | 400 | 2863 | 50 | 317 | 367 | 350 | 559.9 | 236 |
| HCL-4004 | 400 | 5726 | 100 | 367 | 467 | 350 | 559.9 | 274 |
| HCL-4006 | 400 | 8588 | 150 | 417 | 567 | 350 | 559.9 | 311 |
| HCL-4008 | 400 | 11451 | 200 | 467 | 667 | 350 | 559.9 | 349 |
| HCL-40010 | 400 | 14314 | 250 | 517 | 767 | 350 | 559.9 | 387 |
| HCL-40012 | 400 | 17177 | 300 | 567 | 867 | 350 | 559.9 | 425 |
| HCL5002 | 500 | 3653 | 50 | 357 | 407 | 400 | 731.1 | 341 |
| HCL5004 | 500 | 7306 | 100 | 407 | 507 | 400 | 731.1 | 390 |
| HCL5006 | 500 | 10959 | 150 | 457 | 607 | 400 | 731.1 | 439 |
| HCL5008 | 500 | 14612 | 200 | 507 | 707 | 400 | 731.1 | 489 |
| HCL50010 | 500 | 18265 | 250 | 557 | 807 | 400 | 731.1 | 538 |
| HCL50012 | 500 | 21918 | 300 | 607 | 907 | 400 | 731.1 | 587 |
| HCL6002 | 600 | 4276 | 50 | 380 | 430 | 430 | 855.3 | 427 |
| HCL6004 | 600 | 8553 | 100 | 430 | 530 | 430 | 855.3 | 484 |
| HCL6006 | 600 | 12829 | 150 | 480 | 630 | 430 | 855.3 | 541 |
| HCL6008 | 600 | 17106 | 200 | 530 | 730 | 430 | 855.3 | 598 |
| HCL60010 | 600 | 21382 | 250 | 580 | 830 | 430 | 855.3 | 655 |
| HCL60012 | 600 | 25659 | 300 | 630 | 930 | 430 | 855.3 | 712 |
| HCL8002 | 800 | 5821 | 50 | 430 | 480 | 505 | 1169.2 | 668 |
| HCL8004 | 800 | 11642 | 100 | 480 | 580 | 505 | 1169.2 | 746 |
| HCL8006 | 800 | 17462 | 150 | 530 | 680 | 505 | 1169.2 | 825 |
| HCL8008 | 800 | 23283 | 200 | 580 | 780 | 505 | 1169.2 | 904 |
| HCL80010 | 800 | 29104 | 250 | 630 | 880 | 505 | 1169.2 | 982 |
| HCL80012 | 800 | 34925 | 300 | 680 | 980 | 505 | 1169.2 | 1061 |
| HCL0002 | 1000 | 7603 | 50 | 484 | 534 | 570 | 1520.5 | 959 |
| HCL0004 | 1000 | 15205 | 100 | 534 | 634 | 570 | 1520.5 | 1059 |
| HCL0006 | 1000 | 22808 | 150 | 584 | 734 | 570 | 1520.5 | 1160 |
| HCL0008 | 1000 | 30411 | 200 | 634 | 834 | 570 | 1520.5 | 1260 |
| HCL00010 | 1000 | 38013 | 250 | 684 | 934 | 570 | 1520.5 | 1360 |
| HCL00012 | 1000 | 45616 | 300 | 734 | 1034 | 570 | 1520.5 | 1460 |
