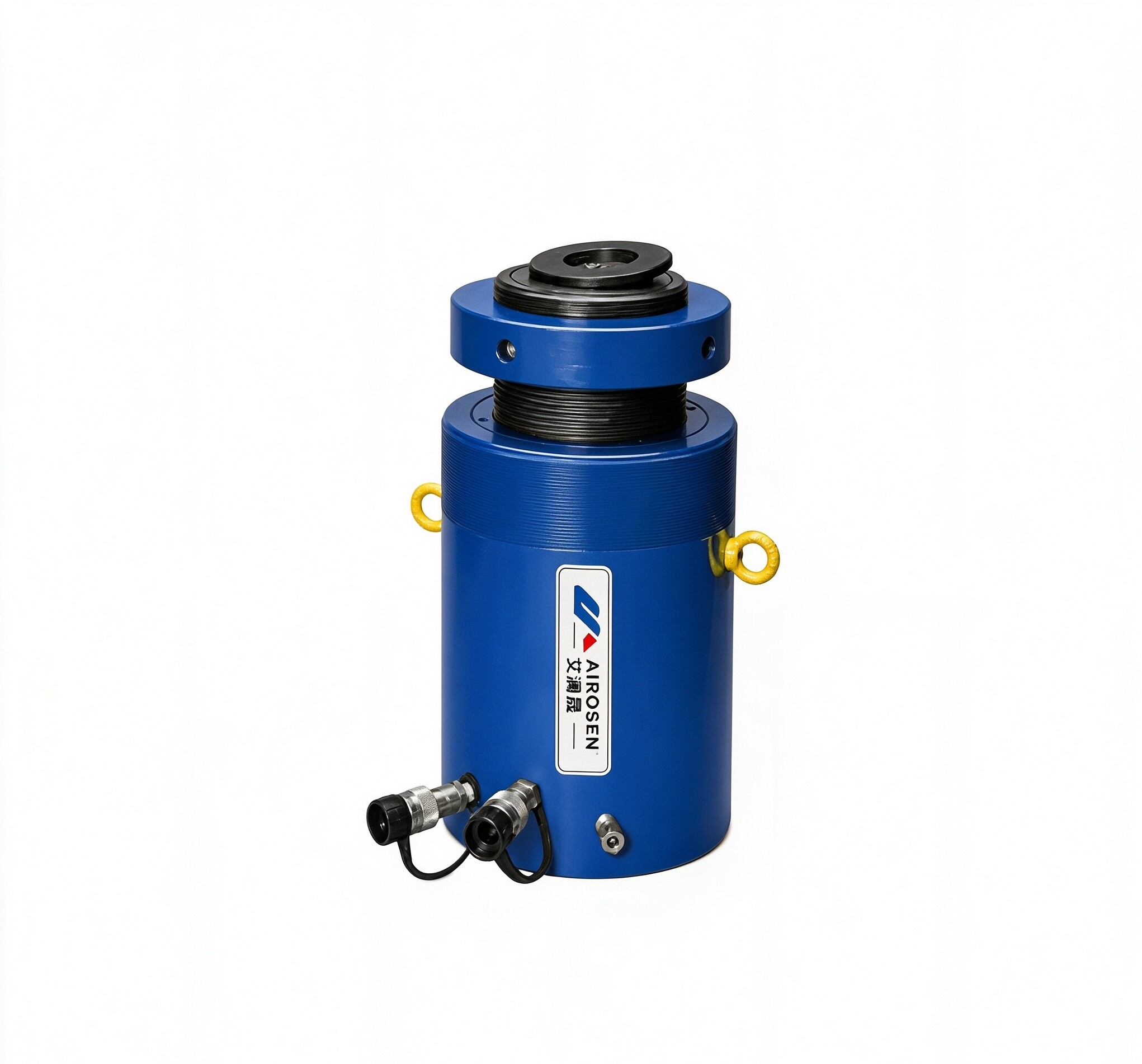

HCRL Series, Double-Acting Locknut Hydraulic Cylinders

Features a threaded piston rod and locking ring design. When the locking ring is tightened and engages with the cylinder body, it can mechanically hold the load for extended periods.

Product Inquiry

Product Description

•Hydraulic Quick Retraction
•Lock nuts maintain mechanical load for a safe working environment.
•Design to withstand up to 10% of the maximum lateral load.
•Integrated inclined saddle allows misalignment up to 5 degrees.
•Hardened surfaces resist lateral loads and cyclic wear.
•Weather protection, indoor & outdoor
•Replaceable bearings enclose the plunger's exterior and interior to provide support.
•Certified lifting eyes, base mounting holes, and neck threads are included as standard.
•Retaining ring to prevent plunger burst
•Low-friction locknut: easy to turn, saves time and effort
•The HCRL series cylinders offer capacities up to 1000 tons and strokes of 24 inches. Contact us for more information.

80%

Considered Secure

The manufacturer's rated load and stroke are maximum safety limits. Best practice recommends using no more than 80% of these ratings!

Product Specifications

Capacity:

50-300 Ton

Itinerary:

150-300mm

Folded Height:

310-596mm

Maximum Operating Pressure:

70 MPa

Weight:

30-319 kg

Product Detail Images

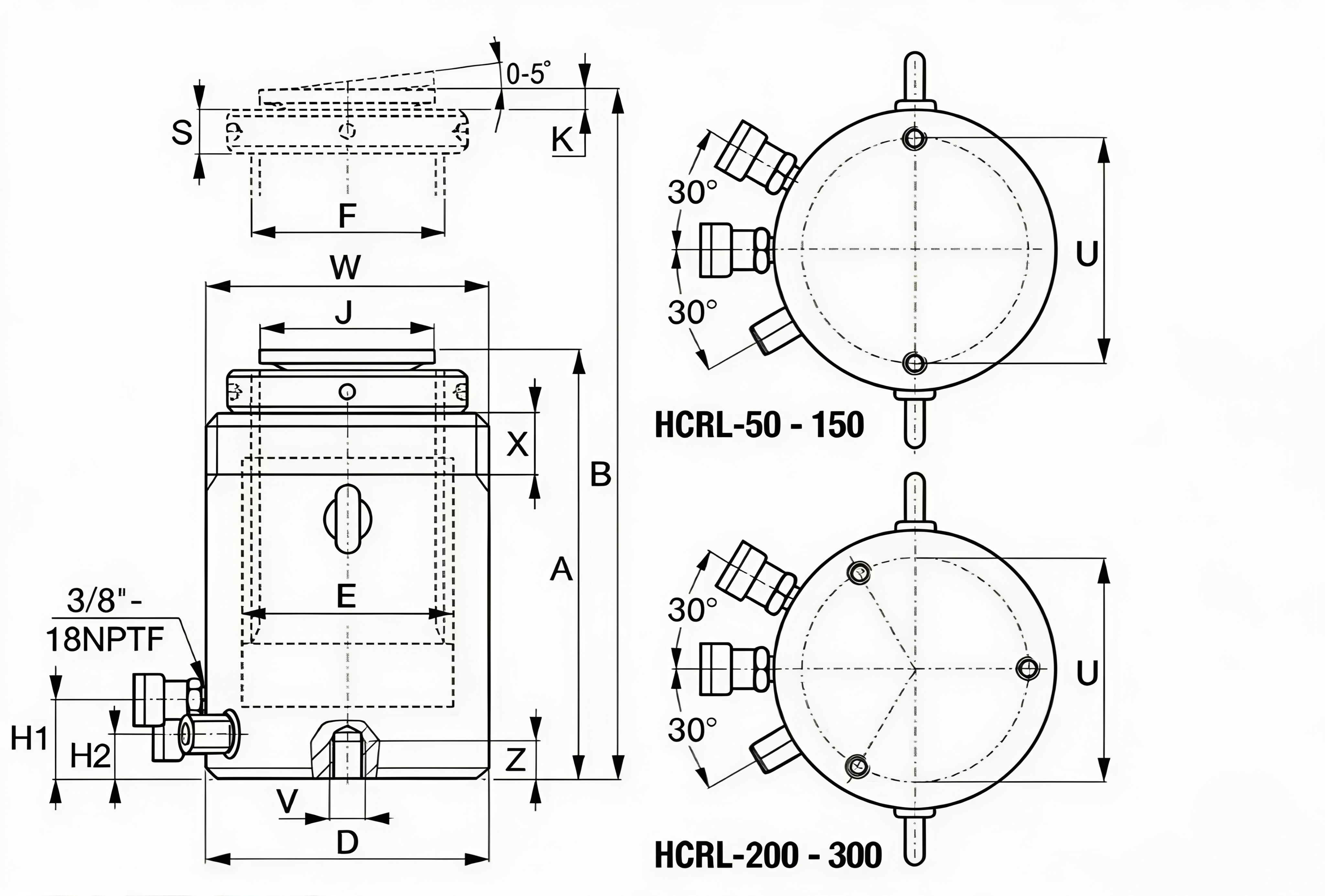

HCRL Series Tie-Rod Hydraulic Cylinder Dimensional Drawing

Product Series

Model	Load/ton	Travel Distance/mm	Effective cylinder area (cm²)	Oil displacement/cm³	Return Oil Capacity/cm³	Folded Height (mm)	Extended Height/mm (B)	Outer Diameter (mm)	Bore/mm(E)	Plunger Diameter/mm (F)	Base to propeller /mm(H1)	Base retraction port /mm(H2)	Saddle Diameter/mm (J)	Saddle tilt/mm(K)	Locknut Height (mm)	Number of bolt circles for base mounting holes / mm (U)	Base Mounting Hole Thread (V)	Minimum thread depth of base mounting hole/mm (Z)	Thread Size (mm)	Thread Length/mm(X)	Weight / kg
HCRL506	50	150	68.4	1025	86	310	460	130	100	TR90X4	41	27	77	15	26	105	M12X1.75	22	M130X2	42	30
HCRL508	50	200	68.4	1367	115	377	577	130	100	TR90X4	41	27	77	15	26	105	M12X1.75	22	M130X2	42	36
HCRL5010	50	250	68.4	1709	143	427	677	130	100	TR90X4	41	27	77	15	26	105	M12X1.75	22	M130X2	42	40
HCRL5012	50	300	68.4	2051	172	477	777	130	100	TR90X4	41	27	77	15	26	105	M12X1.75	22	M130X2	42	45
HCRL006	100	150	141.4	2121	236	346	496	185	140	TR120X60	50	36	77	15	36	150	M12X1.75	22	M185X2	57	64
HCRL008	100	200	141.4	2827	314	421	621	185	140	TR120X60	50	36	77	15	36	150	M12X1.75	22	M185X2	57	77
HCRL0010	100	250	141.4	3534	393	471	721	185	140	TR120X60	50	36	77	15	36	150	M12X1.75	22	M185X2	57	85
HCRL0012	100	300	141.4	4241	471	521	821	185	140	TR120X60	50	36	77	15	36	150	M12X1.75	22	M185X2	57	94
HCRL506	150	150	214.4	3216	236	359	509	222	170	TR150X6	46	32	126	13	45	185	M12X1.75	22	M222X3	70	97
HCRL508	150	200	214.4	4288	314	434	634	222	170	TR150X6	46	32	126	13	45	185	M12X1.75	22	M222X3	70	116
HCRL5010	150	250	214.4	5360	393	484	734	222	170	TR150X6	46	32	126	13	45	185	M12X1.75	22	M222X3	70	129
HCRL5012	150	300	214.4	6432	471	534	834	222	170	TR150X6	46	32	126	13	45	185	M12X1.75	22	M222X3	70	142
HCRL006	200	150	285.9	4288	530	399	549	260	200	TR170X6	71	49	126	13	50	215	M12X1.75	22	M260X3	79	145
HCRL008	200	200	285.9	5718	707	469	669	260	200	TR170X6	71	49	126	13	50	215	M12X1.75	22	M260X3	79	168
HCRL0010	200	250	285.9	7147	884	519	769	260	200	TR170X6	71	49	126	13	50	215	M12X1.75	22	M260X3	79	184
HCRL0012	200	300	285.9	8577	1060	569	869	260	200	TR170X6	71	49	126	13	50	215	M12X1.75	22	M260X3	79	200
HCRL506	250	150	351.9	5278	530	416	566	290	220	TR190X6	71	49	160	15	55	245	M12X1.75	22	M290X3	85	190
HCRL508	250	200	351.9	7037	707	491	691	290	220	TR190X6	71	49	160	15	55	245	M12X1.75	22	M290X3	85	224
HCRL5010	250	250	351.9	8796	884	541	791	290	220	TR190X6	71	49	160	15	55	245	M12X1.75	22	M290X3	85	244
HCRL5012	250	300	351.9	10556	1060	591	891	290	220	TR190X6	71	49	160	15	55	245	M12X1.75	22	M290X3	85	265
HCRL3006	300	150	424.1	6362	530	421	571	315	240	TR210X6	71	49	160	15	55	260	M16X2	25	M315X3	94	230
HCRL3008	300	200	424.1	8482	707	496	696	315	240	TR210X6	71	49	160	15	55	260	M16X2	25	M315X3	94	269
HCRL30010	300	250	424.1	10603	884	546	796	315	240	TR210X6	71	49	160	15	55	260	M16X2	25	M315X3	94	294
HCRL30012	300	300	424.1	12723	1060	596	896	315	240	TR210X6	71	49	160	15	55	260	M16X2	25	M315X3	94	319
