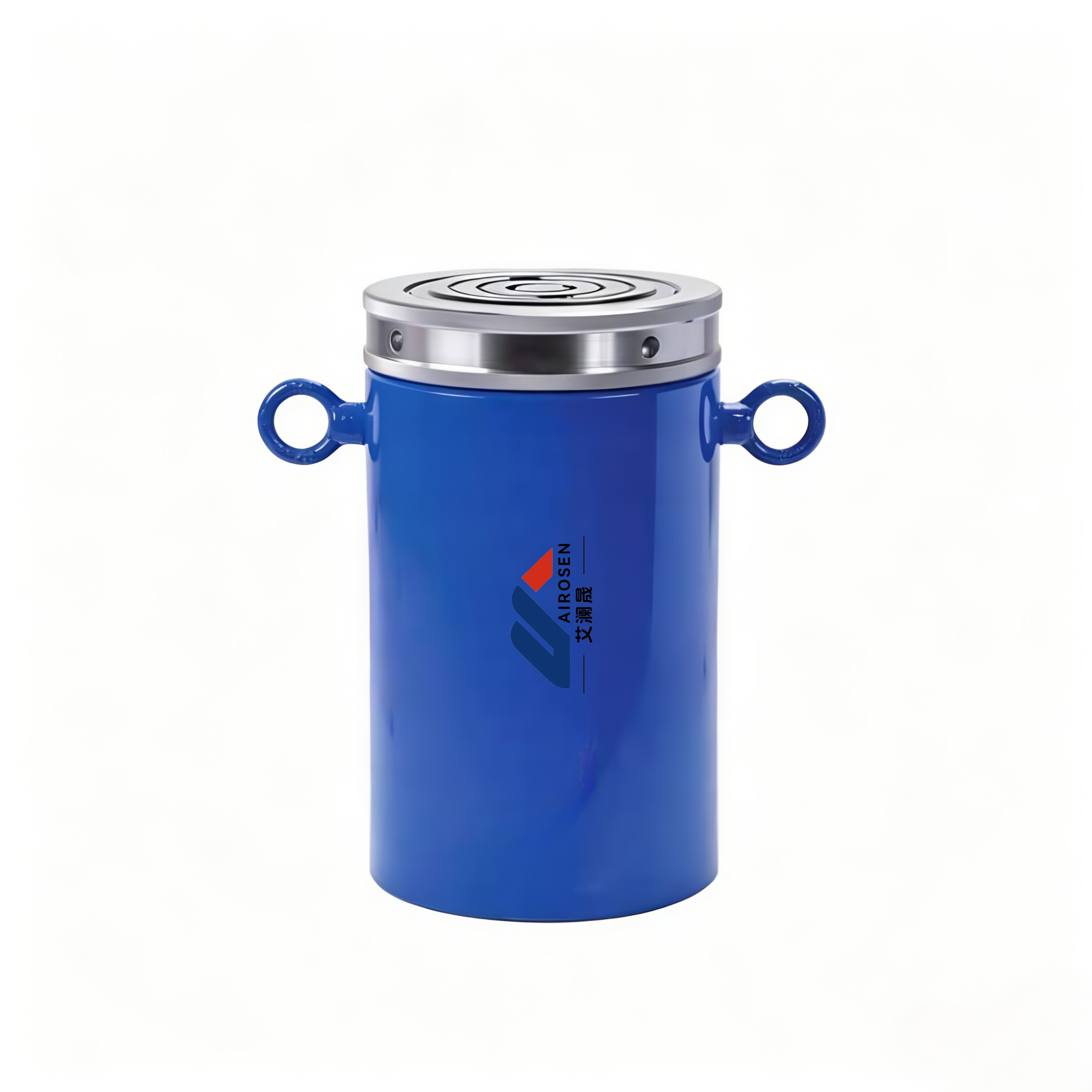

Nut-locking Hydraulic Cylinder (Thin Type)
Lock nuts maintain mechanical load for a safe working environment.
Product Inquiry
Product Description
- •Lock nuts maintain mechanical load for a safe working environment.
- •Integrated tilted saddles allow misalignment up to 5 degrees.
- •Ultra-low profile for tight spaces
- •Lateral load resistance at 10% of maximum capacity
- •The overflow port acts as a travel stop to prevent plunger rupture.
- •Single-acting gravity return type
Security Notice
The manufacturer's rated capacity is the maximum safe limit. Best practice encourages using only 80% of these ratings!
Product Specifications
Capacity:
60-520 Ton
Itinerary:
45-50mm
Maximum Operating Pressure:
70 MPa
Weight:
15-189 kg

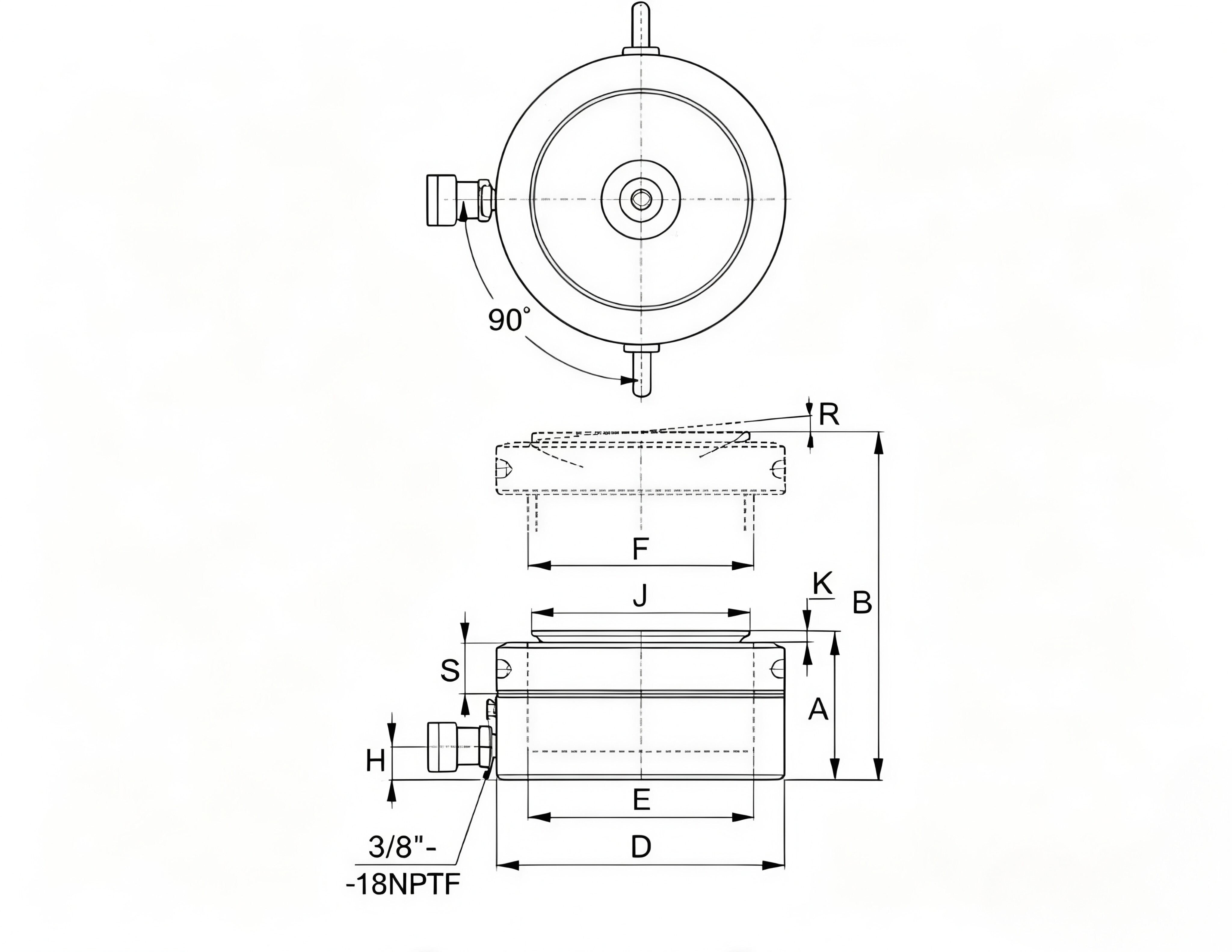

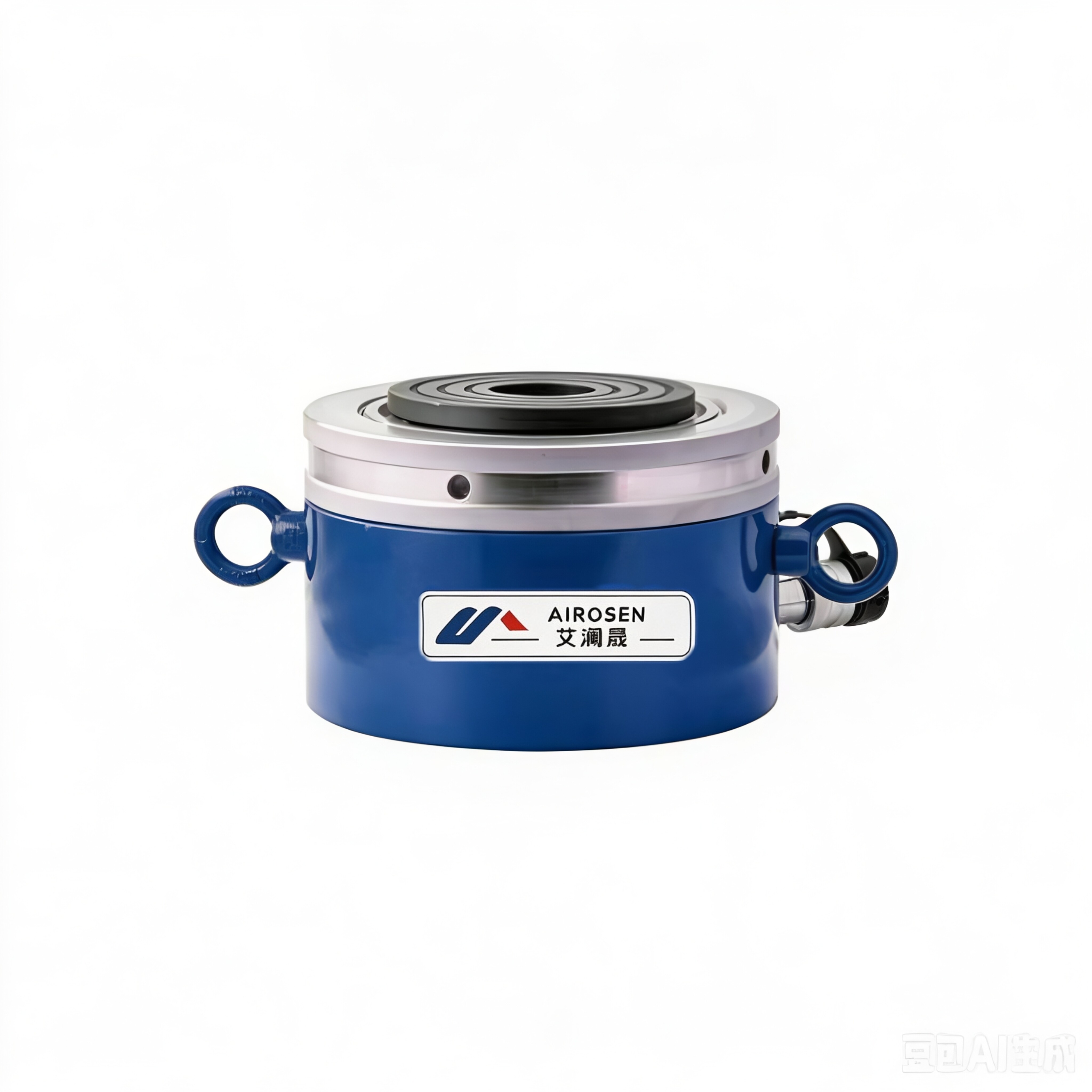

Product Detail Images
Product Series
| Model | Load Capacity (tons) | Use Fuel (cm³) | Itinerary (mm) | High (mm) | Extended Height (mm) | Outer Diameter (mm) | Effective Area (cm²) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| CLP-602 | 60 | 432 | 50 | 125 | 175 | 140 | 70.9 | 15 |
| CLP-1002 | 100 | 734 | 50 | 137 | 187 | 175 | 132.7 | 26 |
| CLP-1602 | 160 | 1040 | 45 | 148 | 193 | 220 | 198.6 | 44 |
| CLP-2002 | 200 | 1285 | 45 | 155 | 200 | 245 | 265.6 | 57 |
| CLP-2502 | 260 | 1650 | 45 | 159 | 204 | 275 | 366.1 | 74 |
| CLP-4002 | 400 | 2517 | 45 | 178 | 223 | 350 | 559.9 | 134 |
| CLP-5002 | 520 | 3287 | 45 | 192 | 237 | 400 | 731.1 | 189 |
